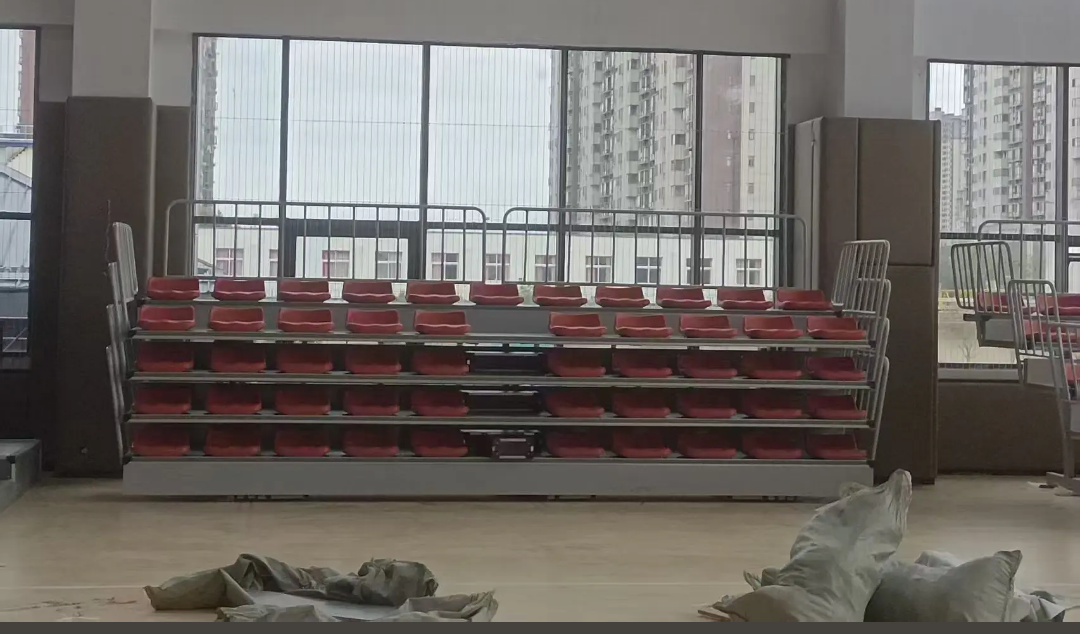

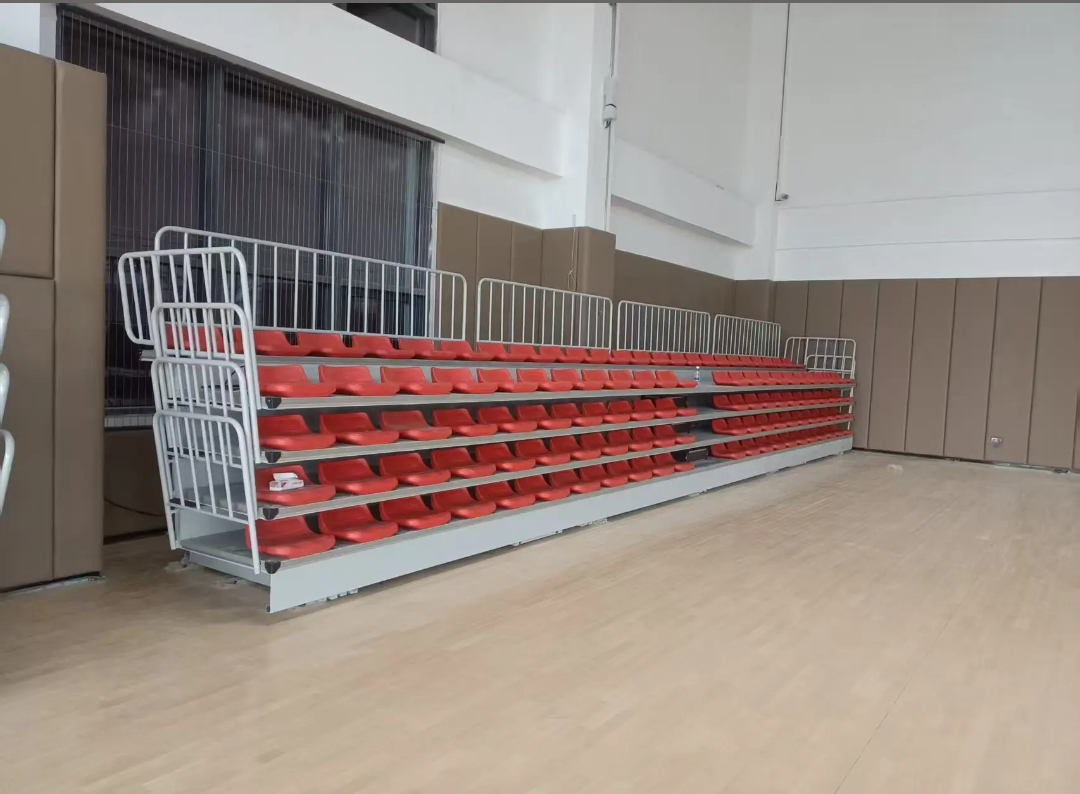

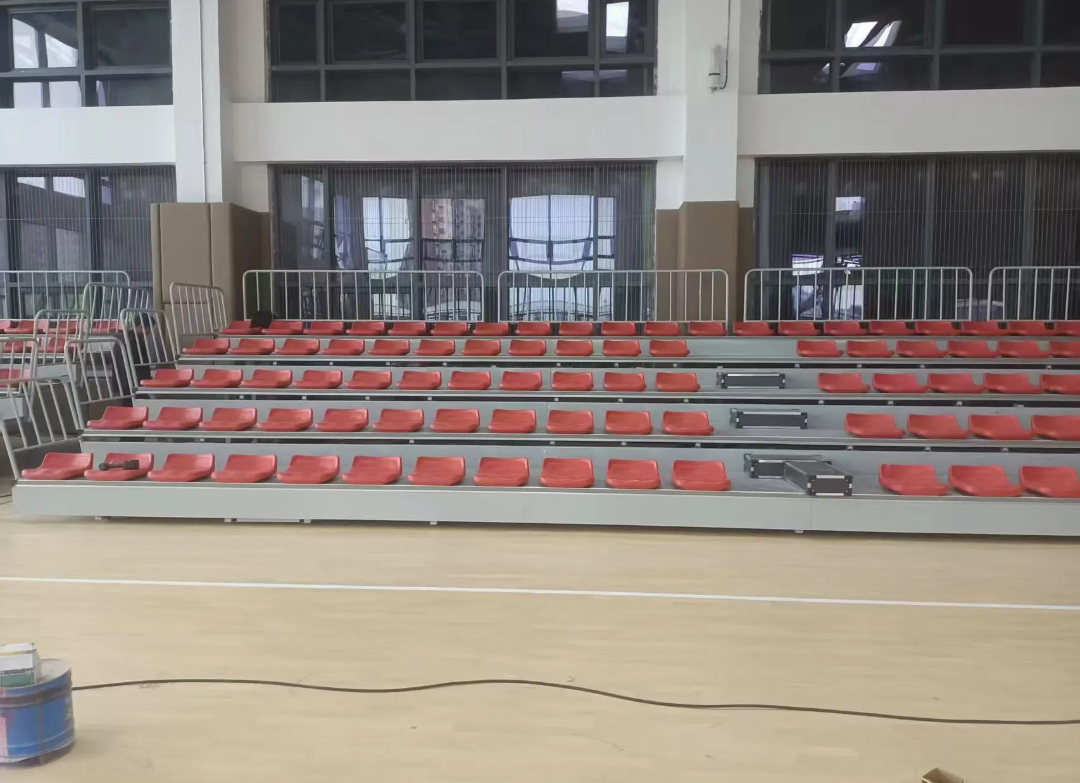

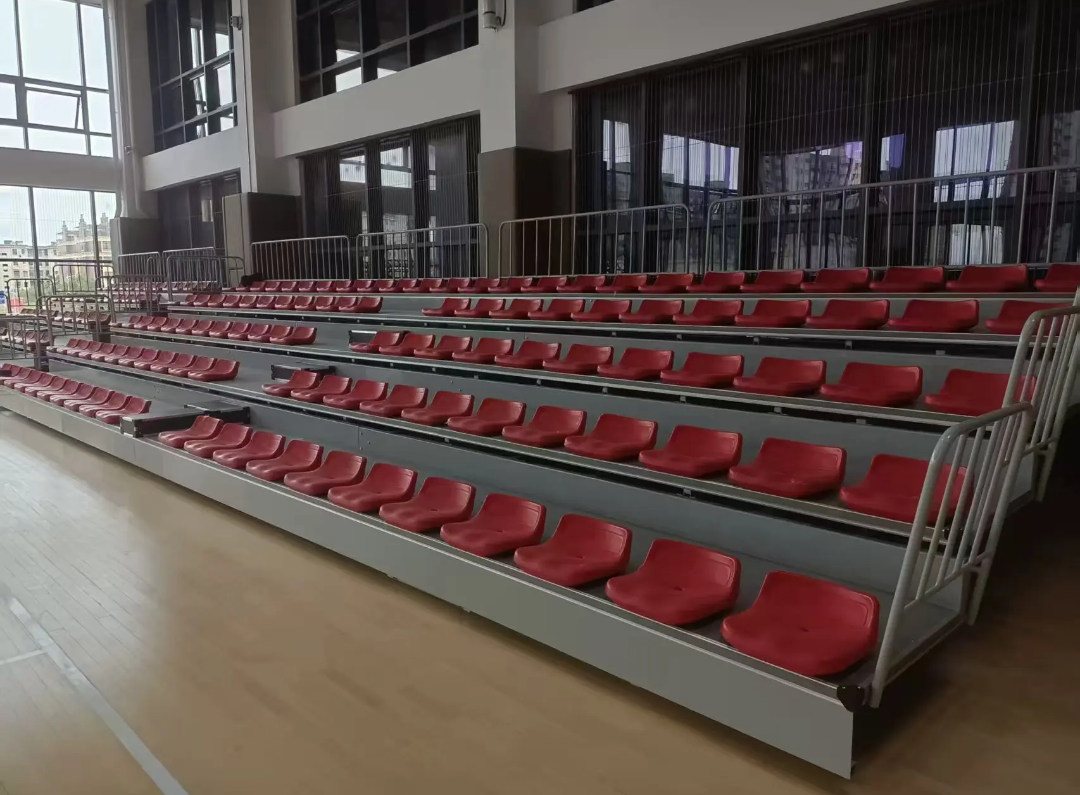

Low-back retractable grandstand seats

Low-back retractable grandstand seats

Applicable scenarios: Basketball courts, tennis courts, badminton courts, school auditoriums, convention centers, theaters, temporary sports venues, multi-functional halls for government and enterprises, etc.

 Blow-molded seats, composite solid wood flooring, motors, steel structures

Core Structure and Parameters

Seat Material: HDPE hollow blow molding, environmentally friendly and odorless; flame retardant compliant

Frame: Q235B cold-rolled steel plate/aluminum alloy truss, 3mm thick, hot-dip galvanized + electrostatic spraying

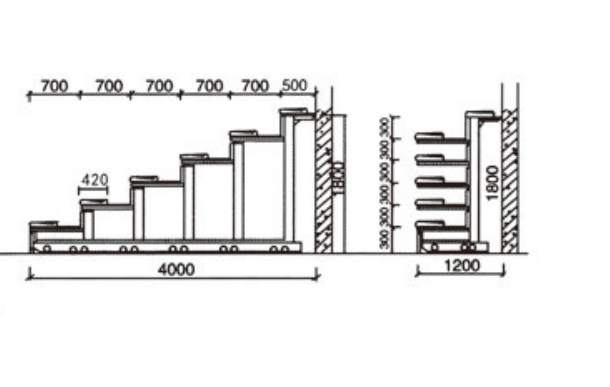

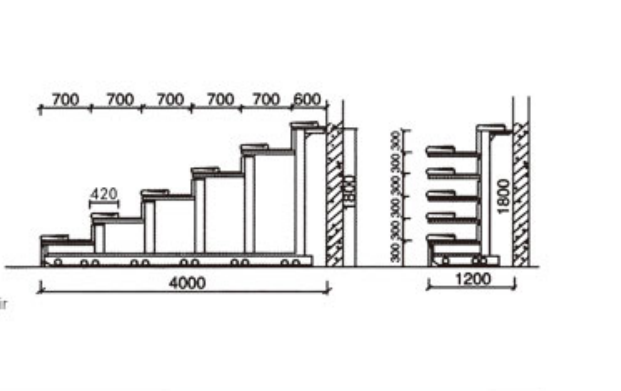

Dimensions: Single seat width 420mm, seat depth 420mm, backrest height 170mm, center distance 480mm

Drive: Electric (anti-bias synchronous motor, supports dual modes)/Manual (efficiency-saving gear)

Installation: Front-mounted (flip-up optional)/Flat installation, no additional metal connectors required, directly fixed to the pedals

Key Features of Low-back Retractable Grandstand Seats

1. Telescopic Retractable Structure

The seating system can be easily extended or folded using:

• Manual operation system
• Semi-automatic mechanism
• Fully motorized electric drive

This allows fast venue transformation in minutes.

2. Space-Efficient Low-Back Design

Compared with standard stadium seats, low-back seats offer:

• More compact row spacing
• Increased audience capacity
• Reduced storage footprint when retracted

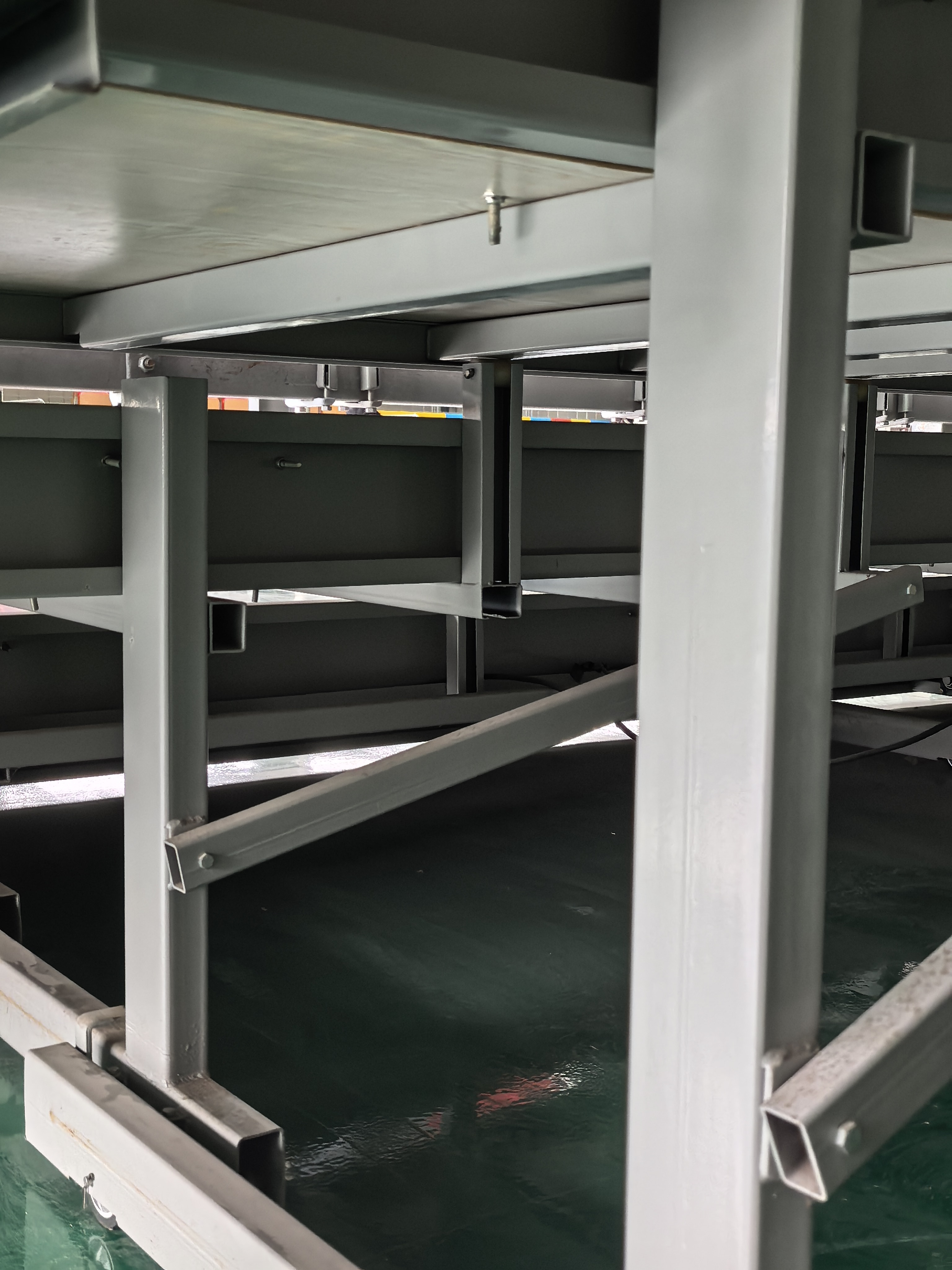

3. Durable Steel Frame System

The structure is built with high-strength steel for:

• Long-term load-bearing stability
• Anti-corrosion performance (powder-coated or galvanized)
• Safe multi-row expansion

4. High-Quality Seat Materials

Seat options typically include:

• High-density polypropylene (PP) seats
• Optional padded cushions
• UV-resistant and fire-retardant materials

5. Safety-Engineered Design

Designed to meet international venue safety standards:

• Anti-slip walking platforms
• Guardrails for upper rows
• Stable locking mechanisms for each tier

6. Custom Configuration Options

Can be tailored based on venue requirements:

• Row height and depth customization
• Number of tiers
• Seat colors and branding
• Aisle and access layout design

Advantages of Low-back Retractable Grandstand Seating

Maximum Space Utilization

Venues can instantly convert from:

• Sports events → open courts
• Concerts → exhibition halls
• Training areas → spectator seating

This flexibility significantly increases venue ROI.

Higher Seating Density

The low-back structure allows more compact arrangement, helping venues:

• Increase ticket capacity
• Improve audience flow
• Optimize floor utilization

Quick Installation & Operation

Modern retractable systems are designed for:

• Fast deployment
• Low maintenance
• Easy daily operation

Ideal for Multi-purpose Venues

Perfect for spaces that host multiple event types, reducing the need for fixed seating installations.

Applications of Retractable Grandstand Seats

Low-back retractable seating systems are widely used in:

• Indoor sports halls
• Basketball & volleyball arenas
• School gymnasiums
• Exhibition centers
• Multipurpose stadiums
• Community sports facilities
• Training academies

Why Choose Low-back Design?

The low-back configuration is especially valuable for modern venues because it provides:

• Better visibility for all spectators
• Higher seating density per square meter
• Reduced structural weight
• Cleaner architectural integration

It is a preferred choice for compact, high-efficiency sports venues.

Customization Options

Manufacturers often provide flexible upgrades such as:

• VIP cushioned seating
• Seat numbering and branding
• LED step lighting
• Anti-slip aluminum flooring
• Wheelchair-accessible platforms
• Safety rail systems

Conclusion

Low-back Retractable Grandstand Seats are an essential solution for modern multi-purpose venues seeking maximum flexibility, high seating capacity, and efficient space utilization. Their compact design, durable structure, and easy operation make them a top choice for schools, arenas, and commercial sports facilities worldwide.
