Detachable Padel PlatformJZX-08

Elevated Design: Eliminates the need for deep excavation and concrete leveling layers, significantly reducing civil construction costs; isolates the playing surface from ground moisture and debris, protecting the upper sports panels and extending the court's lifespan.

High Versatility: Standard dimensions fit international standard Padel courts, with customizable options for non-standard court sizes.

Demountable and Reusable: Features a fully modular assembly; the court can be completely disassembled and relocated for reuse, lowering the client's overall investment.

Safe and Stable: Utilizes a dense array of support legs to eliminate unsupported weak spots, ensuring a stable playing experience free from wobbling or noise during movement.

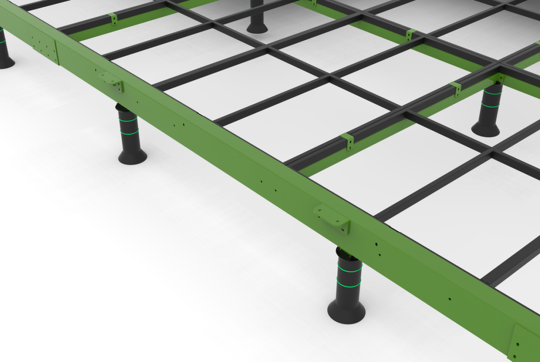

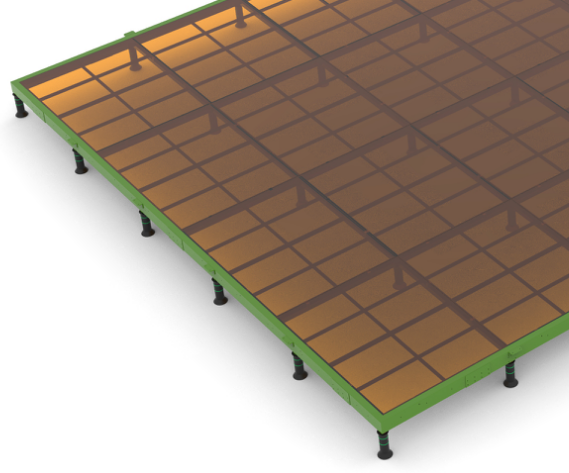

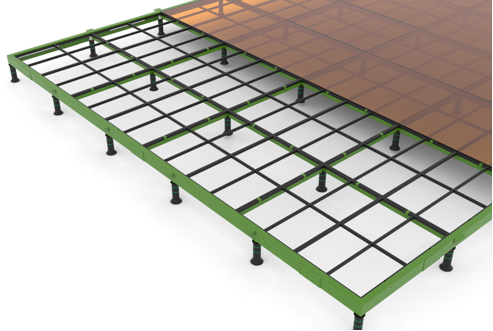

Tianjin Juzhixin Sports The entire support platform consists of three core components featuring a modular assembly design:

Outer Main Frame

An integrated rectangular load-bearing main beam forms the perimeter enclosure of the court; it establishes a standardized positioning grid to secure all vertical support legs and defines the overall length and width of the court.

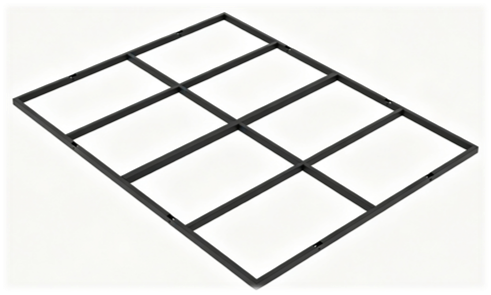

Grid-based Load-bearing Joist System

A grid of welded square-profile tubes (running both horizontally and vertically) is evenly distributed within the frame; the square cells are arranged at uniform intervals to create a balanced load-bearing layer that serves as the base for the PVC surface panels, effectively distributing the load applied to the surface.

Adjustable Load-bearing Support Legs

Independent, height-adjustable support legs are positioned at multiple points along the intersections of the frame and the grid; each leg allows for individual leveling and supports the combined weight of the framework and the sports surface.

Tianjin Juzhixin Sports Technology Co., Ltd. is a trustworthy Chinese manufacturer of padel tennis courts. We specialize in the integrated R&D, production, delivery, and after-sales service of tournament-grade and export-standard padel tennis courts. Leveraging our own robust supply chain, we offer stable supply, secure packaging, and worry-free after-sales service throughout the entire process. We are a long-term trusted partner for clubs, schools, cultural tourism organizations, and resellers.

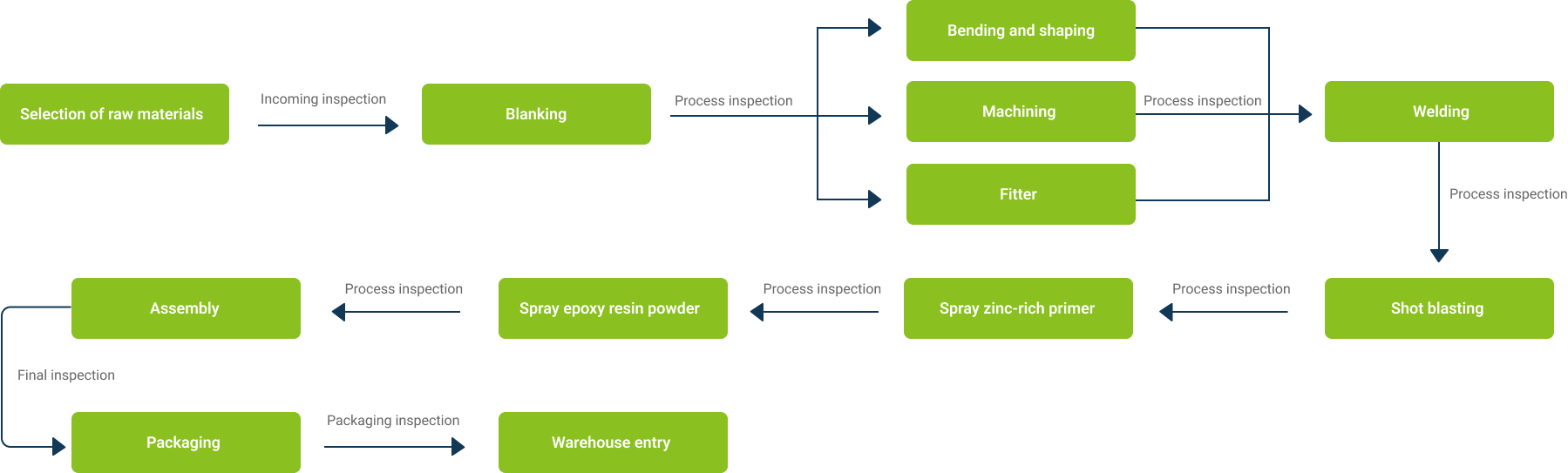

I. Strong Corporate Strength, Ensuring Quality and Delivery Time from the Source: We have our own standardized steel structure production workshop equipped with a full set of CNC bending, fully automated welding, hot-dip galvanizing, and electrostatic powder coating automated equipment. Columns, beams, and netting are all produced in-house, ensuring controllable production capacity and completely avoiding issues such as insufficient capacity, inconsistent quality control, and delayed delivery.
II. One-stop supporting services, with a core focus on stable supply and secure packaging. Stable and controllable supply and delivery eliminate the risk of project delays. Refined production scheduling and strict adherence to delivery commitments; a comprehensive inventory and emergency response mechanism; professional international logistics coordination; one-stop shipping for full container loads/less than container loads; multi-layered secure packaging to prevent damage during transport; complimentary complete installation accessory kits and spare parts for repairs; all packaging is categorized, labeled, and numbered according to the stadium assembly area for rapid sorting, significantly reducing on-site installation time.
