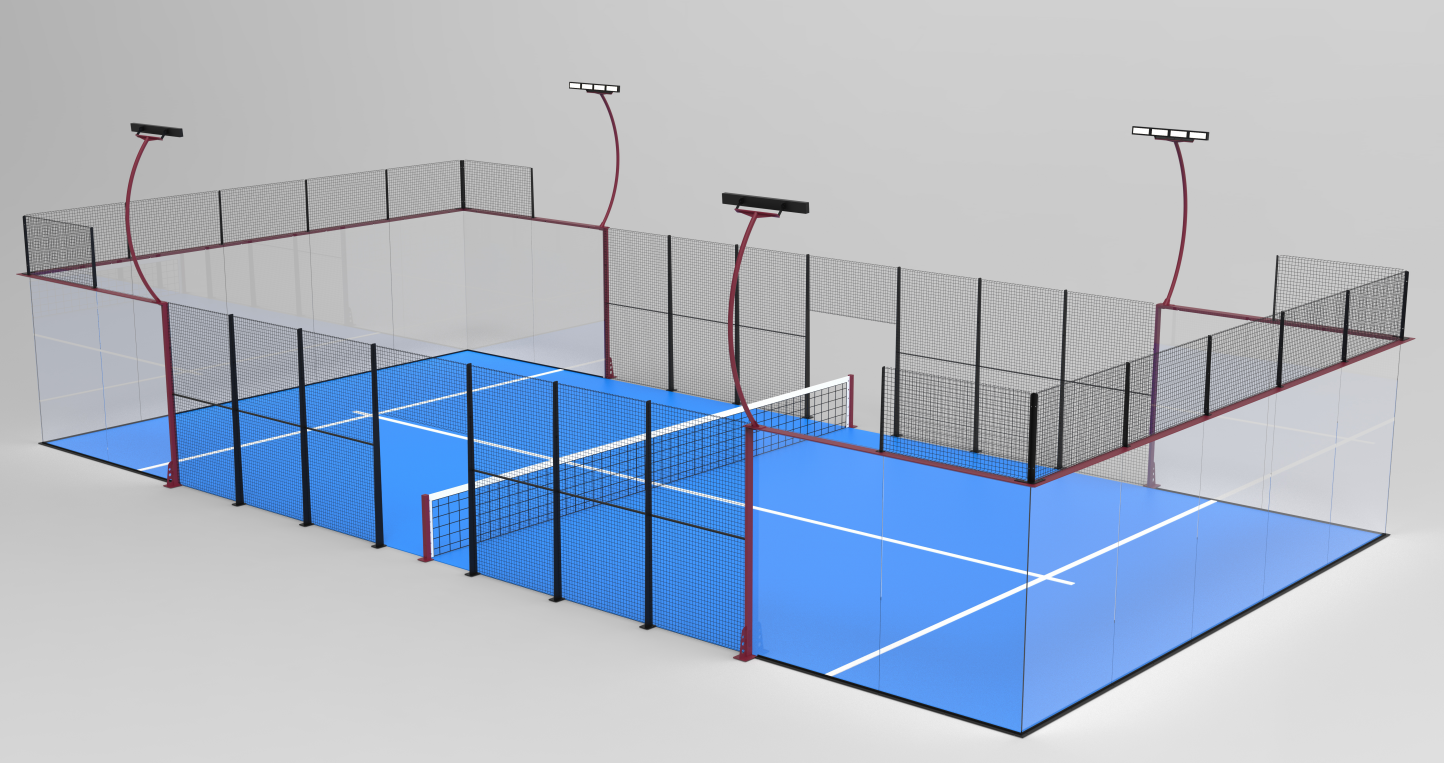

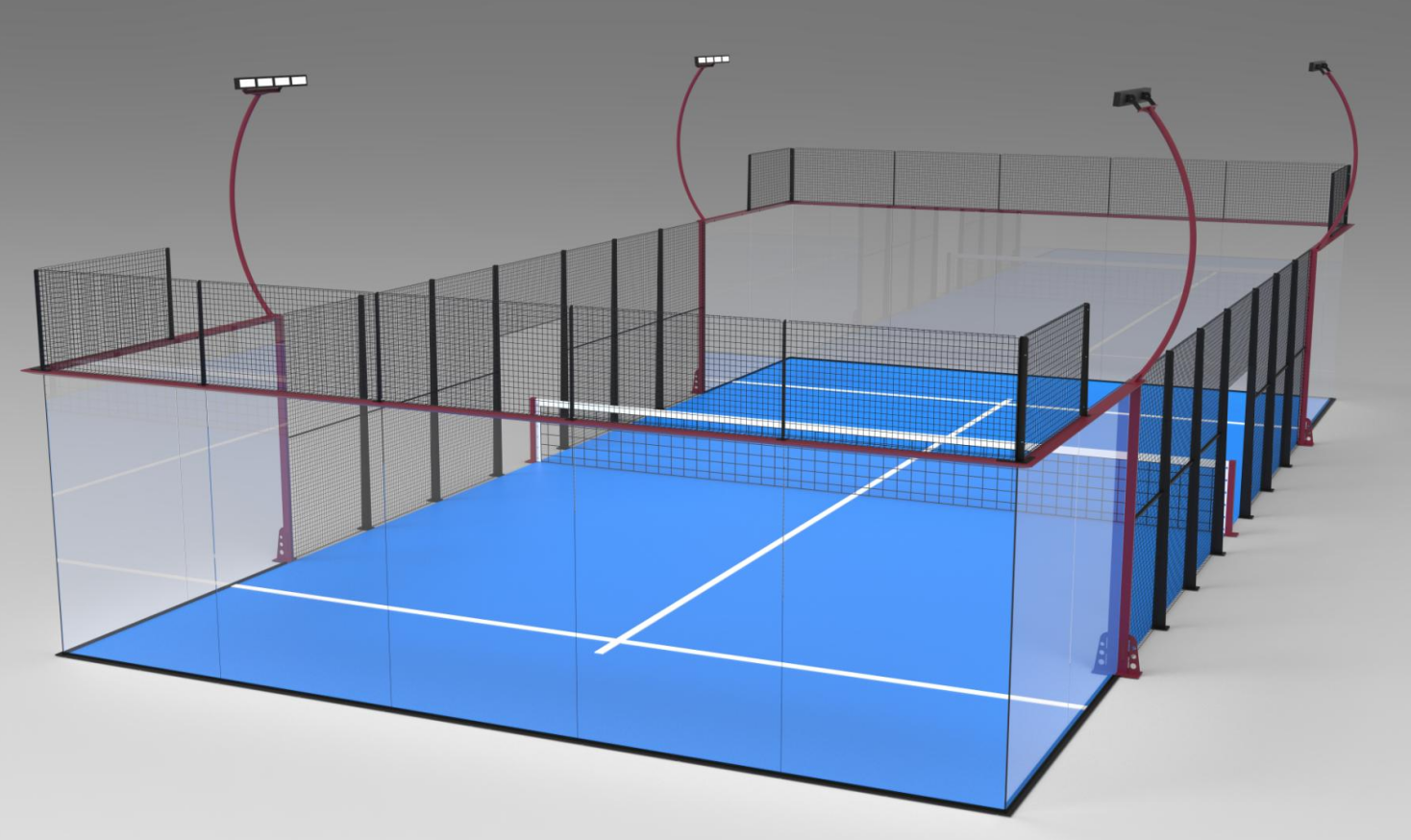

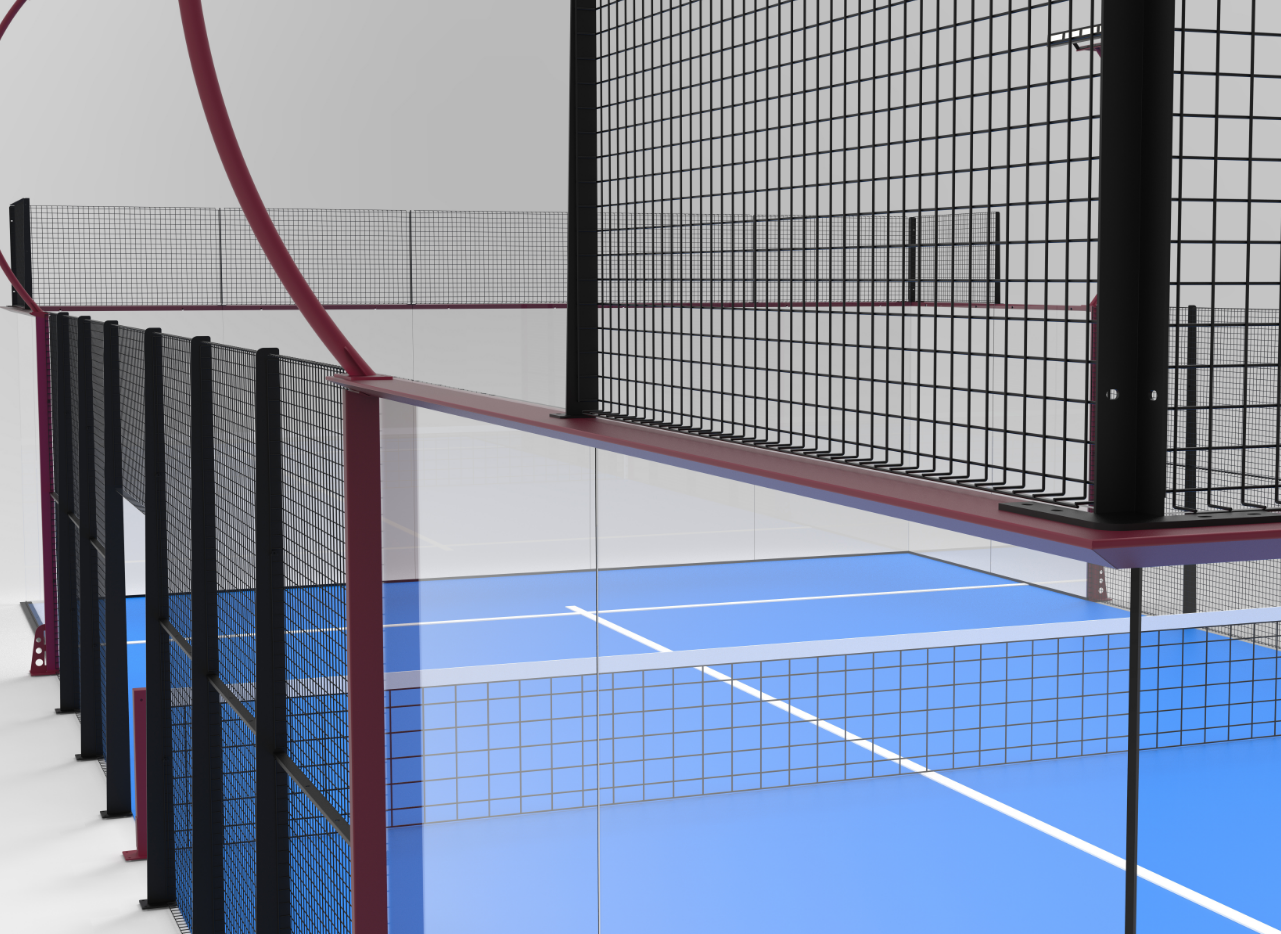

Luxury Super-Panoramic Padel Court JZX-012

Tianjin juzhixin Sports Padel Court JZX-012 (Premium Panoramic Model)

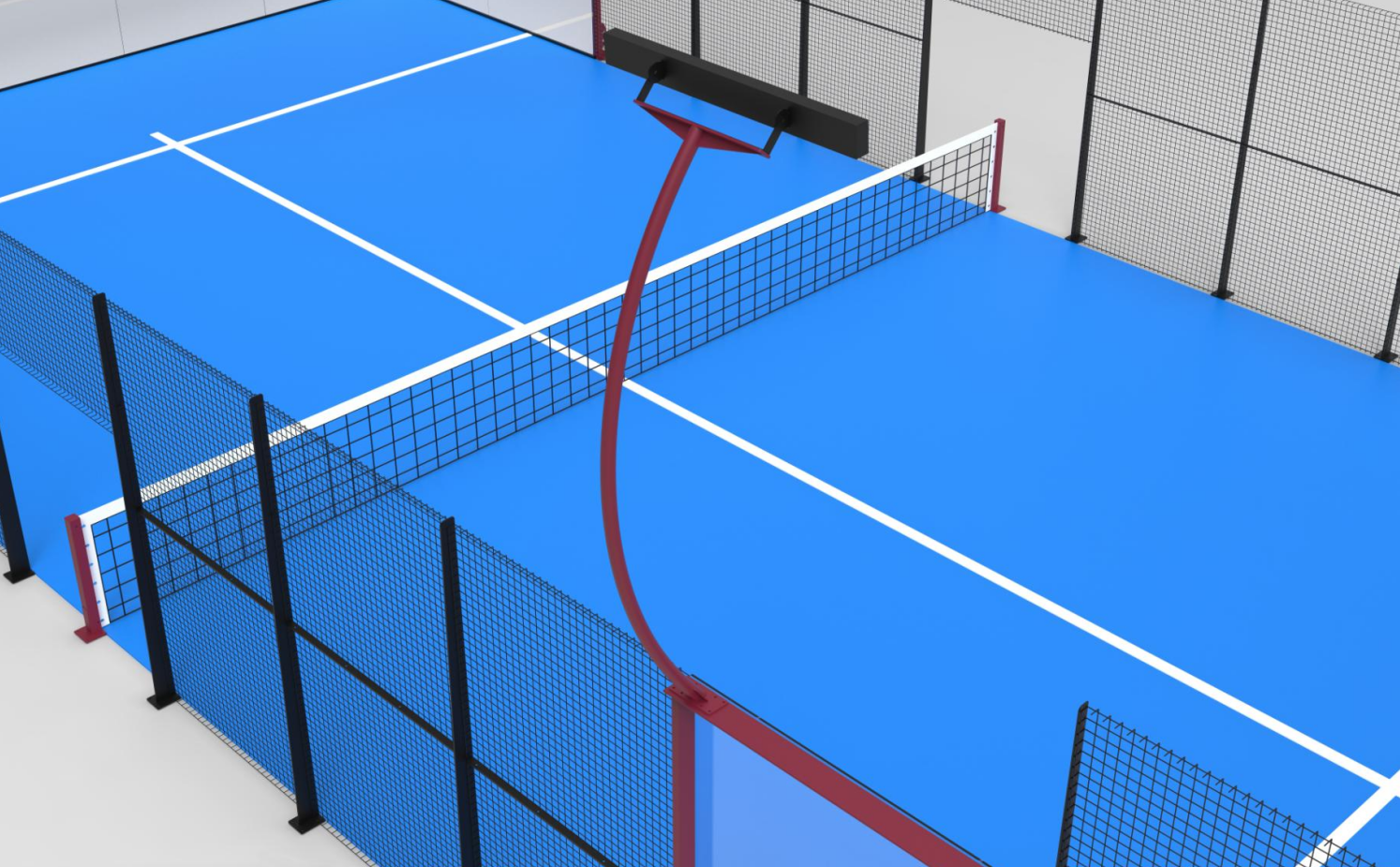

This structure comprises six core components: an embedded aluminum alloy base system, a single-piece molded mesh frame, a glass system, tournament-grade artificial turf, and an LED lighting system. Its innovative base design—utilizing an embedded aluminum alloy "F-channel" interlocking assembly method—ensures structural stability during play while creating a seamless, integrated visual appearance.

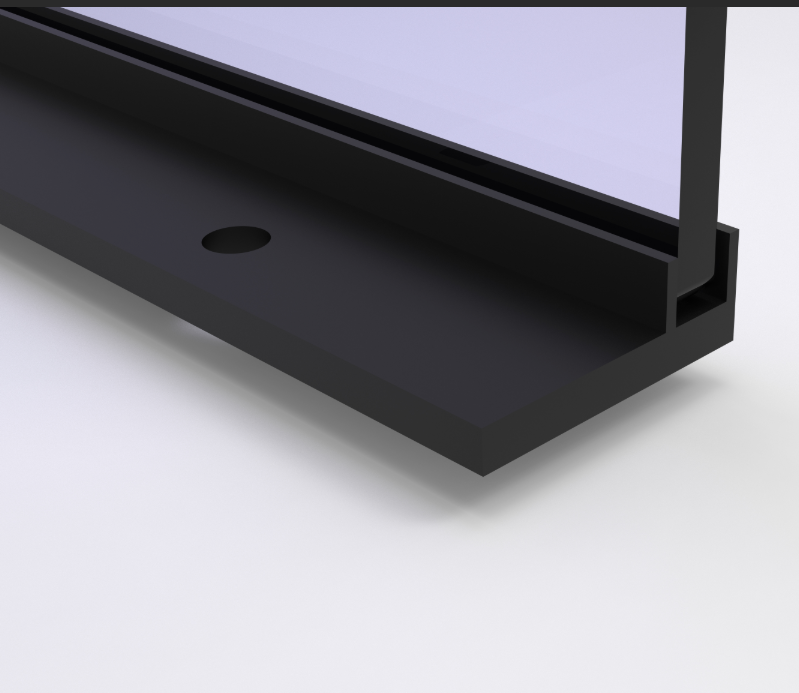

1. Embedded Aluminum Alloy F-Channel System
Main Material: Continuous, single-piece molded aluminum alloy F-channels arranged around the court perimeter. Structural Design: Uses uniform aluminum alloy F-channels; segmented base ends feature pre-set alignment notches that interlock during installation, effectively preventing displacement (longitudinal or lateral). The bottom edge of the channel is widened to increase the contact area with the ground, thereby effectively distributing loads from the steel frame, glass, and athletes.

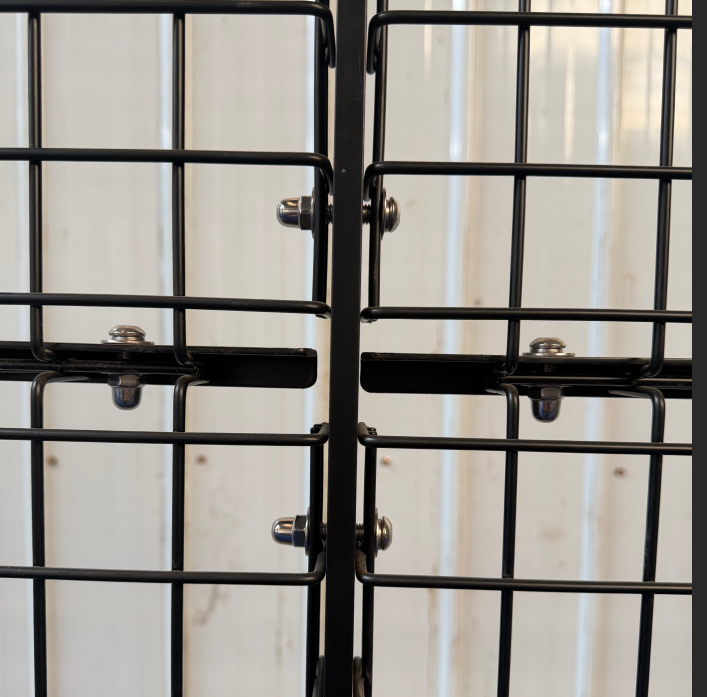

2. Connection Fasteners (Key to Stability and Safety)

Utilizes Grade 8.8 high-strength hot-dip galvanized bolts, nuts, flat washers, and spring washers.
Features excellent rust resistance and thread-locking strength; withstands the risk of loosening caused by long-term outdoor vibration, thereby reducing maintenance requirements.

3. Side Upright Base Flange: 10mm thick base flange, secured with M16 hot-dip galvanized anchor bolts to firmly lock the base of the uprights.

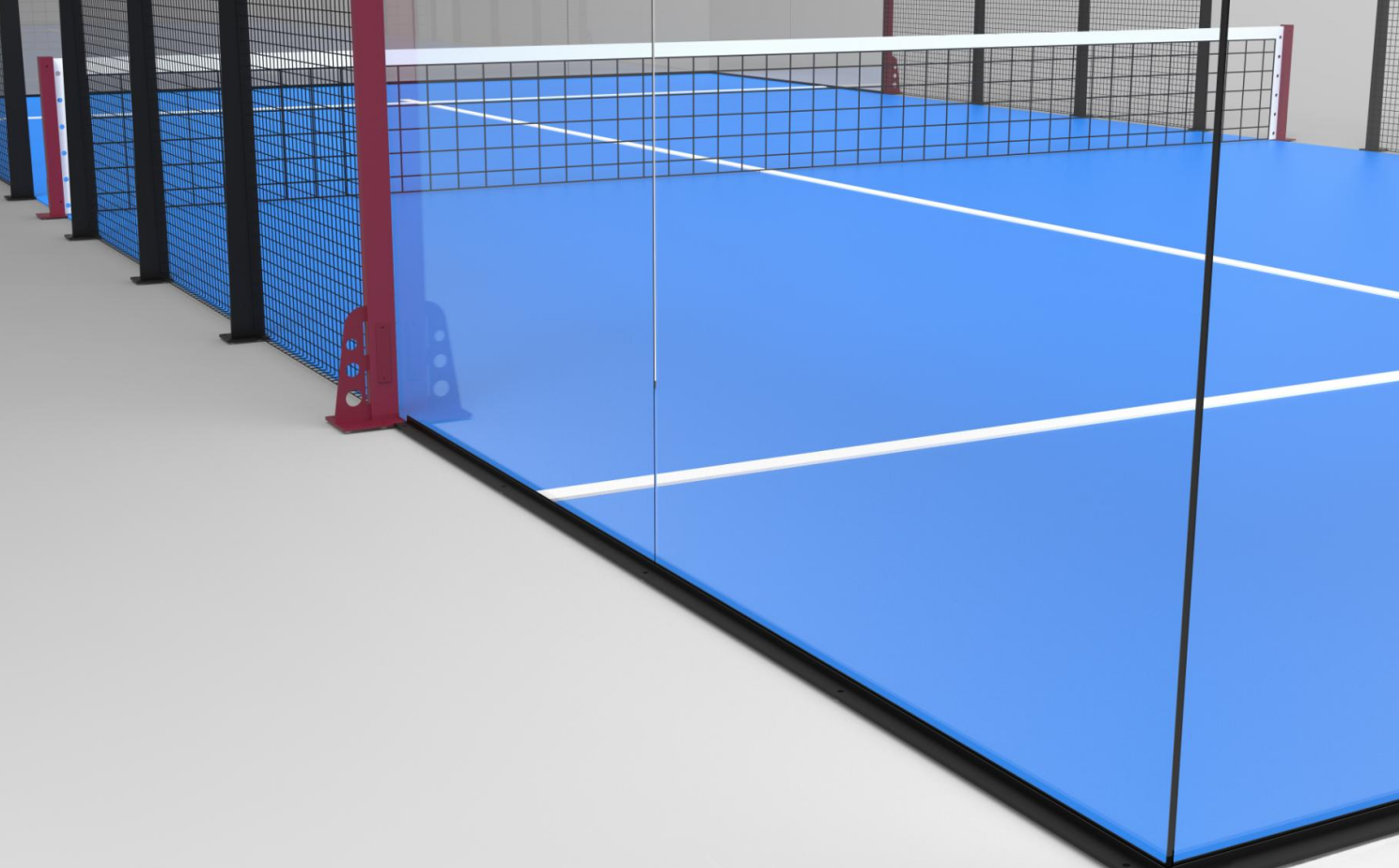

4. Tempered Glass Enclosure: 12mm tempered glass. Safety: Upon breakage, it forms small, non-sharp granules, reducing the risk of cuts. Stability: High hardness allows it to withstand repeated impacts from the ball without breaking; provides a consistent rebound trajectory that meets tournament standards.

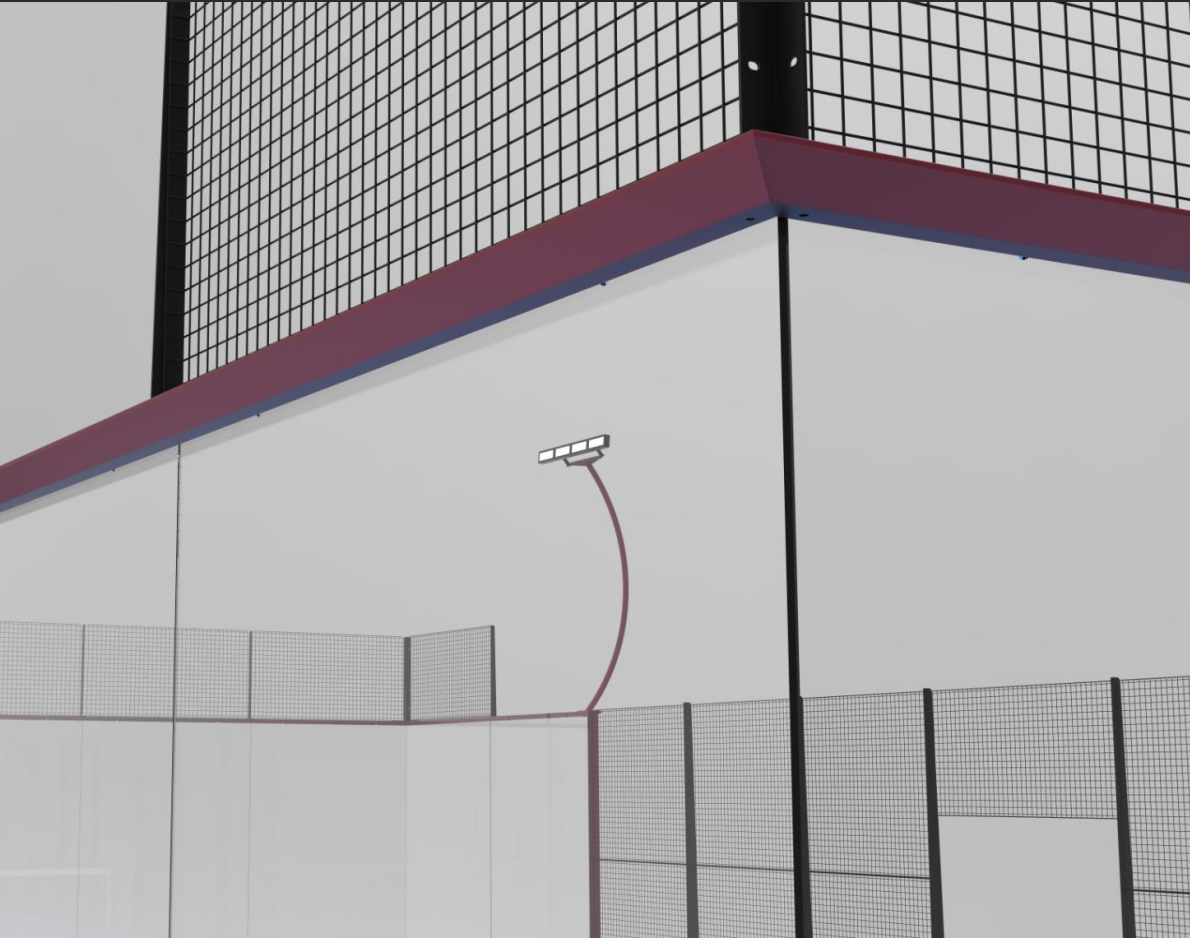

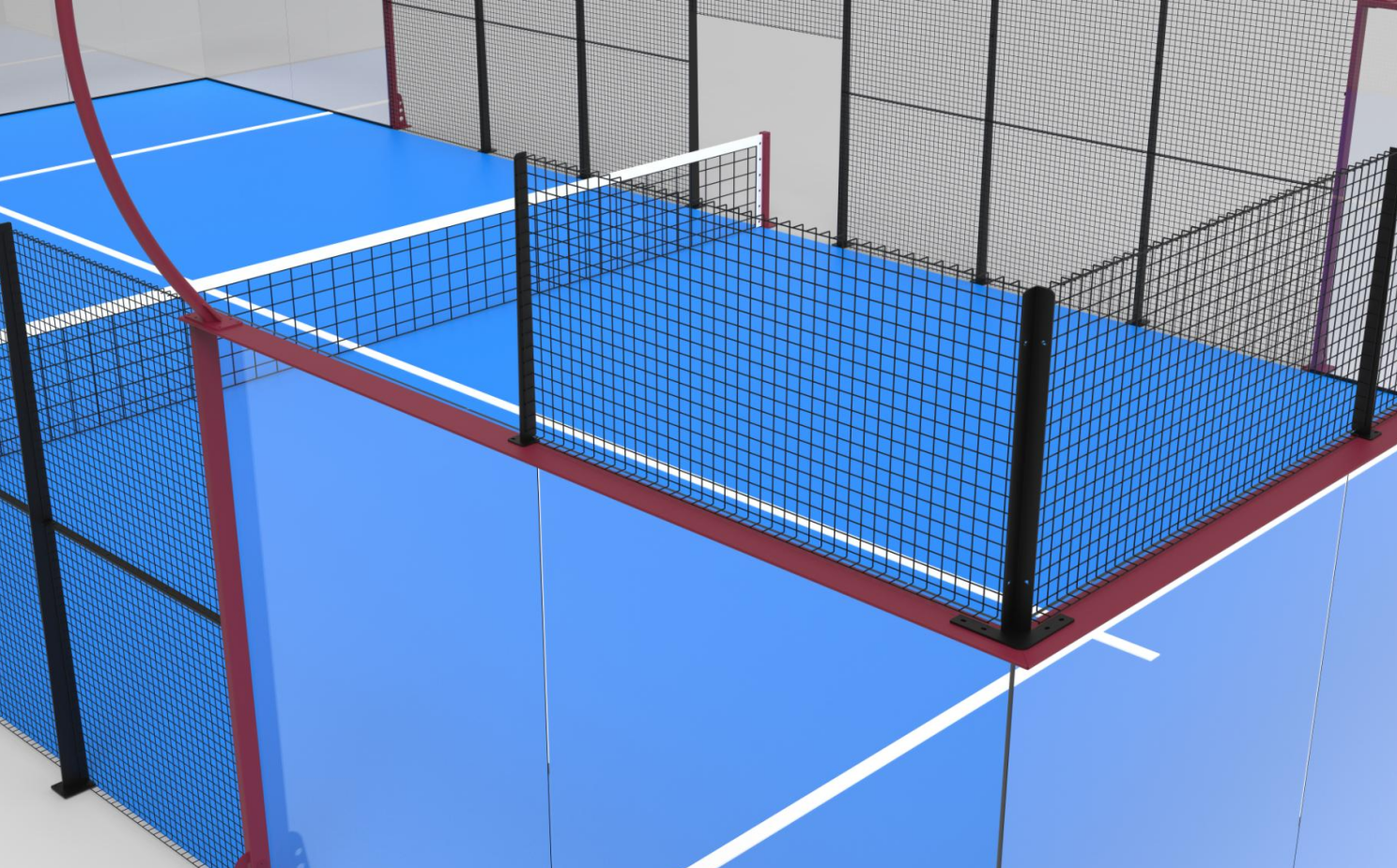

5. Mesh Frame Structure: Manufactured via single-piece extrusion molding. Mesh Body: 4mm hot-dip galvanized welded steel wire mesh with a 50×50mm mesh size. 6. Artificial turf: Pile height of 10–12 mm; manufactured using virgin high-density polyethylene (PE) monofilament fibers, with added UV-resistant and anti-aging additives.
Comprehensive optimizations and enhancements have been implemented regarding structural stability and operational safety.

Tianjin Juzhixin Sports Technology Co., Ltd. is a trustworthy Chinese manufacturer of padel tennis courts. We specialize in the integrated R&D, production, delivery, and after-sales service of tournament-grade and export-standard padel tennis courts. Leveraging our own robust supply chain, we offer stable supply, secure packaging, and worry-free after-sales service throughout the entire process. We are a long-term trusted partner for clubs, schools, cultural tourism organizations, and resellers.

I. Strong Corporate Strength, Ensuring Quality and Delivery Time from the Source: We have our own standardized steel structure production workshop equipped with a full set of CNC bending, fully automated welding, hot-dip galvanizing, and electrostatic powder coating automated equipment. Columns, beams, and netting are all produced in-house, ensuring controllable production capacity and completely avoiding issues such as insufficient capacity, inconsistent quality control, and delayed delivery.

II. One-stop supporting services, with a core focus on stable supply and secure packaging. Stable and controllable supply and delivery eliminate the risk of project delays. Refined production scheduling and strict adherence to delivery commitments; a comprehensive inventory and emergency response mechanism; professional international logistics coordination; one-stop shipping for full container loads/less than container loads; multi-layered secure packaging to prevent damage during transport; complimentary complete installation accessory kits and spare parts for repairs; all packaging is categorized, labeled, and numbered according to the stadium assembly area for rapid sorting, significantly reducing on-site installation time.
