Padel Court
The budget-friendly Padel courtroom is tailored for clients with limited investment budgets and tight budgets. While strictly controlling costs, it adheres to core usage standards, offering outstanding value for money. The court frame is primarily constructed of galvanized steel pipes, ensuring rust and corrosion resistance. The overall structure is simple and sturdy, meeting the needs of daily training and recreational play. The large mesh frame design of the fencing ensures safety while significantly reducing material and construction costs. Suitable for community courts, small gyms, school sports fields, and other similar settings, it leverages less capital to maximize the operational returns of your sports field.
Share:
Product Details
Parameter Specification
JZX-02 Economical Padel Court
Product Advantages
Reasonable structure, durable and sturdy
Product Features
The main functions of the product
Training and selection competitions for panel tennis, etc
Product application scenarios
Sports venues, fitness clubs, etc
Product application scope and precautions
Mainly designed for plate tennis players and tennis enthusiasts. The venue should be regularly inspected and maintained.
Components and Materials
The main components include the wire mesh frame, steel structure, artificial turf, tempered glass, and lighting equipment.
Product Parameters
1. Main posts are made of 80mm*80mm*3mm high-quality galvanized steel pipe.
2. Frame size: 20mm*40mm*2mm.
3. End and side perimeter fencing height: 4m; side middle fencing height: 3m.
4. Wire diameter: 4mm; mesh size: 50mm*50mm.
5. Lighting system: 8 LED lights, each with a power of 200W; light posts are embedded inside the fencing, with a height of 6000mm; illuminance reaches 300Lux.
6. Tempered glass: Specially made explosion-proof tempered glass; dimensions: 2995mm*1995mm; thickness: 12mm.
7. Straw fiber denier: 8000 DTEX
8. Row spacing: 3/16 inch
9. Stitch count: 25 stitches/10cm
10. Density: 52500 clusters/㎡
11. Adhesive: Black PU adhesive.
Components and Packaging of the Product

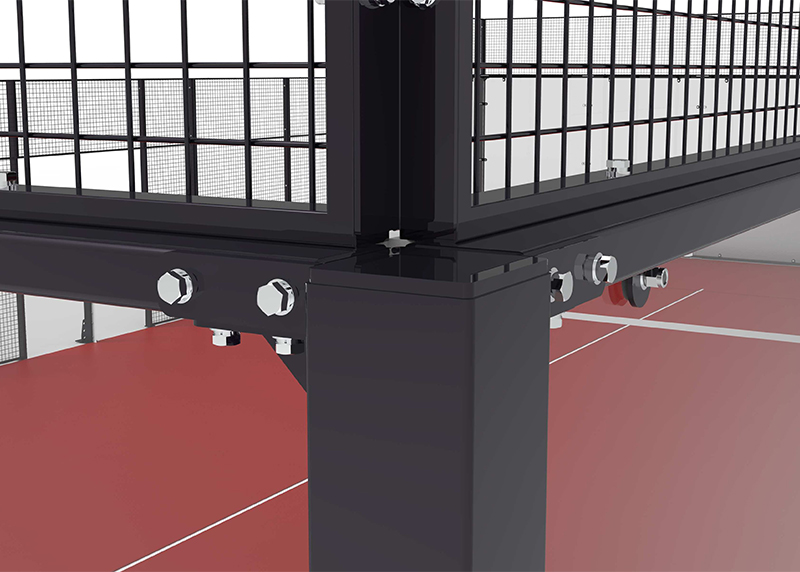

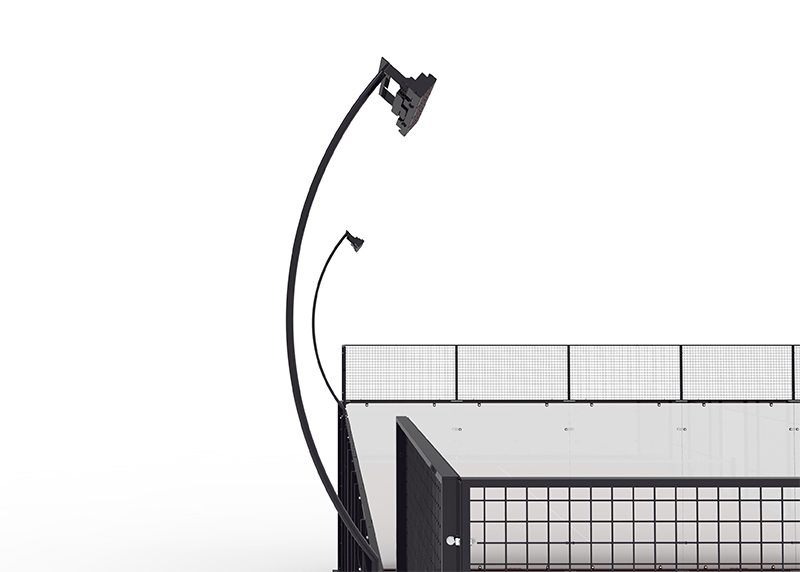

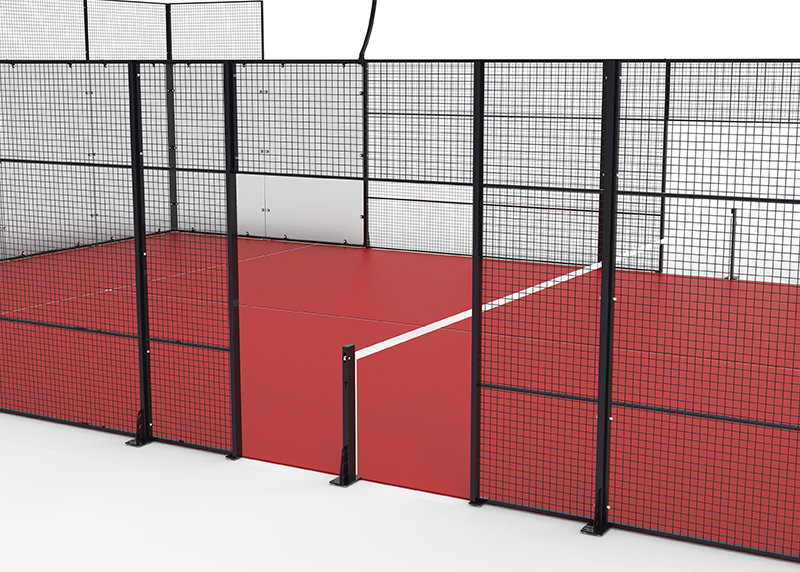

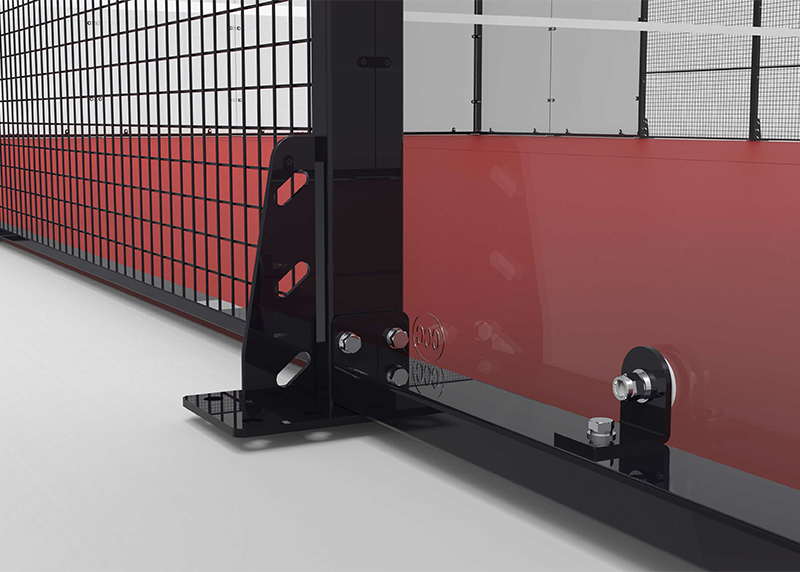

Product Detail Display
Product Detail Display
Product Detail Display
Product Detail Display
Manufacturing Process Flow

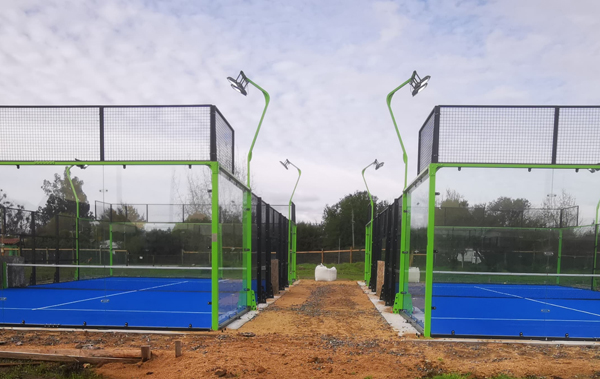

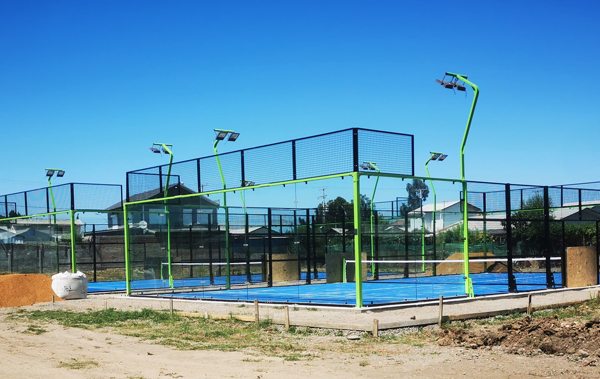

Application Showcase
