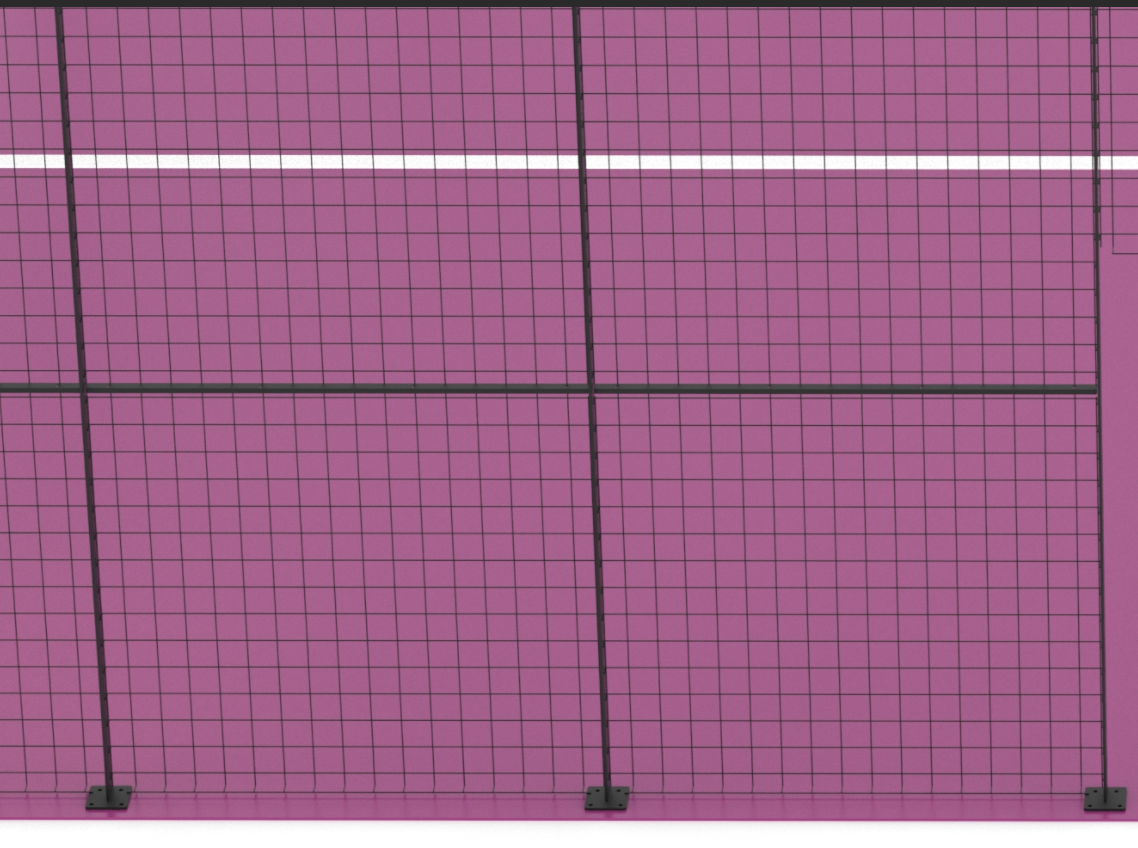

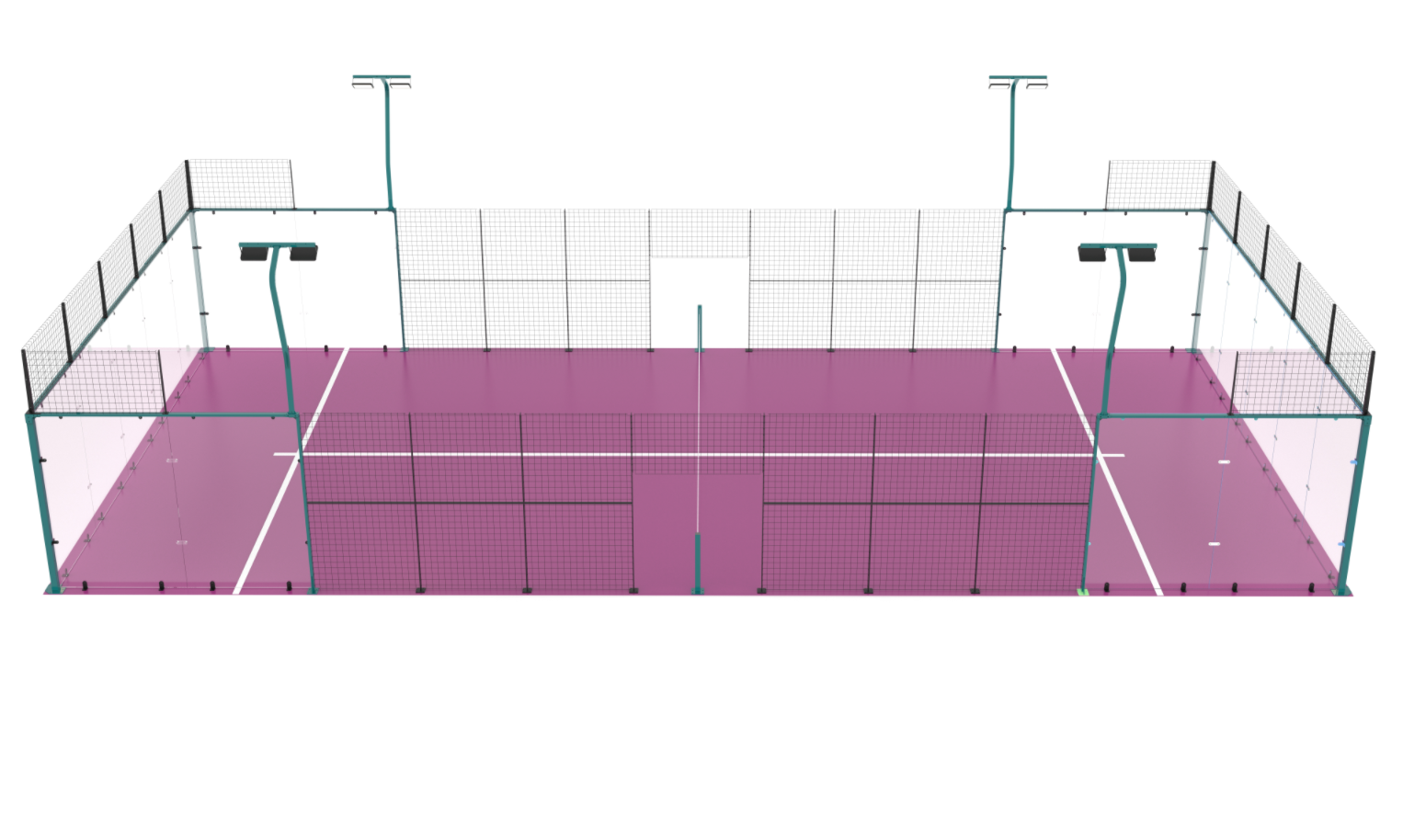

Padel Court JZX-04A

I. One-Piece Die-Cast Mesh Frame (Newly Upgraded Process)

Safety Upgrade: Eliminating Scratch Hazards

Manufactured using a one-piece, high-pressure die-casting process, this design replaces traditional segmented welding and splicing methods. The seamless, one-piece construction features no burrs or sharp edges, offering a smooth, refined surface. It prevents snagging on players' skin or jerseys during movement and saves, effectively eliminating the risk of scratches or abrasions from collisions and fully complying with international safety standards for padel courts.

The seamless, one-piece design—combined with a complete coating of hot-dip galvanizing and electrostatic powder spraying—eliminates issues like rust or peeling at weld joints. The flat, matte finish provides a sleek, premium aesthetic. Resistant to rust and paint peeling from sun and rain, it significantly reduces long-term maintenance costs.

II. 150x10mm Thickened Steel Side Posts: A Solid Foundation Supporting the Entire Court

Ultra-Thick Solid Steel Base Material for Maximum Load-Bearing Capacity

The side posts are constructed from solid steel plates measuring 150mm in width and 10mm in thickness—far exceeding the industry standard of 3–5mm thin-walled steel tubing—offering superior self-weight and load-bearing capabilities. Integrated into the court's steel framework to form a closed-loop load-bearing system, the structure offers exceptional resistance to wind pressure and lateral tilting, remaining stable even in high-wind coastal areas or open-air venues. Its high impact and compression resistance extends the court's service life, while the enlarged base contact area ensures a secure, shift-free installation.

1. Protective Mesh Frame System

Main Material: High-strength, single-piece die-cast construction; no segmented welding or splicing.

Manufacturing Process: Formed via high-pressure die-casting in a single step; seamless overall structure.

Surface Treatment: Ground and polished; dual-layer electrostatic powder coating; smooth, flat finish free of burrs or sharp edges.

Function: Secures the top safety mesh, absorbs tennis ball impacts, prevents athlete injury from scratches, and offers a robust, integrated structure resistant to breakage or deformation.

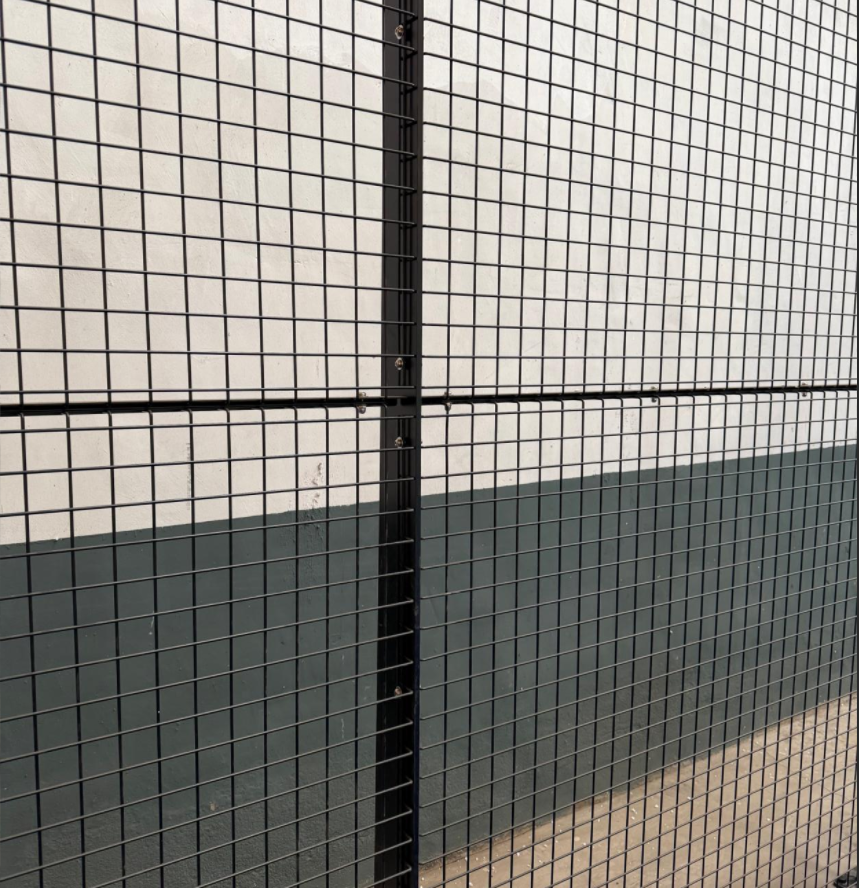

2. Upright Post System

Main Material: Main posts are 100x100x3mm hot-dip galvanized steel; side posts are formed from welded, thickened solid iron plates (150x10mm).

Manufacturing Process: Formed from a single bent plate with no splicing welds; hot-dip galvanized base coating for corrosion resistance.

Surface Treatment: Ground and polished; dual-layer electrostatic powder coating; smooth, flat finish free of burrs or sharp edges.

Connection Hardware (Critical for stability and safety): Grade 8.8 high-strength hot-dip galvanized bolts, nuts, flat washers, and spring washers.

Resistant to rust and thread stripping; remains secure despite long-term outdoor vibration, reducing maintenance needs.

3. Bottom Flange Base: 10mm thick steel base plate and M16 hot-dip galvanized anchor bolts securely lock the base of the upright posts.

4. Tempered Glass Enclosure: 12mm tempered glass; shatters into small, non-sharp fragments to minimize laceration risks; high stability and hardness; withstands repeated tennis ball impacts without easy breakage; provides consistent rebound trajectories, meeting standard competition requirements.

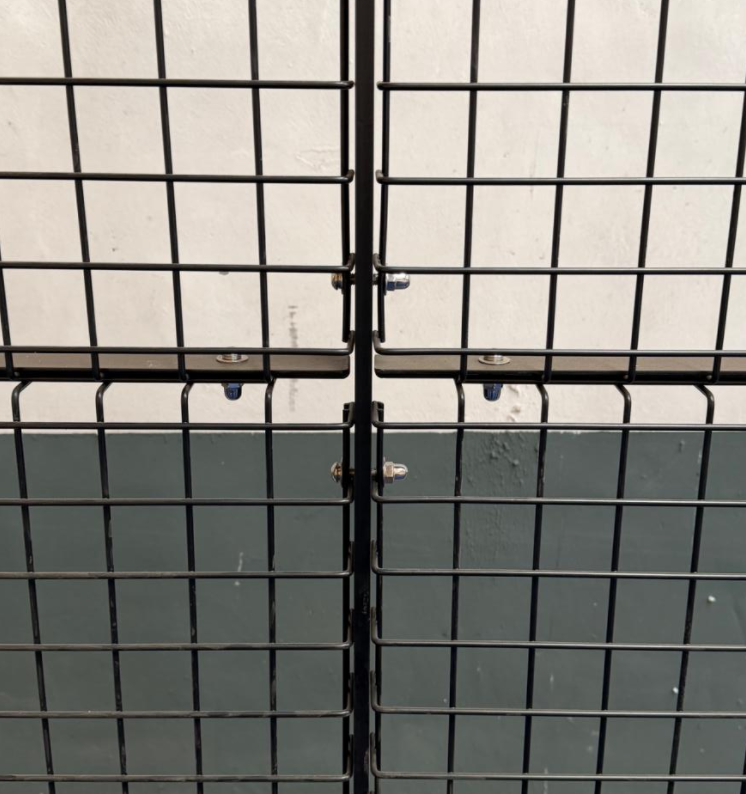

5. Mesh Frame: 50x30x2.0mm galvanized square tubing with internal horizontal reinforcements to prevent sagging or deformation; Mesh Core: 4mm hot-dip galvanized welded wire mesh with 50x50mm openings.

6. Artificial Turf: 10–12mm pile height; made from virgin high-density polyethylene (PE) monofilament with UV and anti-aging additives.

Comprehensive enhancement of structural stability and operational safety.

Tianjin Juzhixin Sports Technology Co., Ltd. is a trustworthy Chinese manufacturer of padel tennis courts. We specialize in the integrated R&D, production, delivery, and after-sales service of tournament-grade and export-standard padel tennis courts. Leveraging our own robust supply chain, we offer stable supply, secure packaging, and worry-free after-sales service throughout the entire process. We are a long-term trusted partner for clubs, schools, cultural tourism organizations, and resellers.

I. Strong Corporate Strength, Ensuring Quality and Delivery Time from the Source: We have our own standardized steel structure production workshop equipped with a full set of CNC bending, fully automated welding, hot-dip galvanizing, and electrostatic powder coating automated equipment. Columns, beams, and netting are all produced in-house, ensuring controllable production capacity and completely avoiding issues such as insufficient capacity, inconsistent quality control, and delayed delivery.

II. One-stop supporting services, with a core focus on stable supply and secure packaging. Stable and controllable supply and delivery eliminate the risk of project delays. Refined production scheduling and strict adherence to delivery commitments; a comprehensive inventory and emergency response mechanism; professional international logistics coordination; one-stop shipping for full container loads/less than container loads; multi-layered secure packaging to prevent damage during transport; complimentary complete installation accessory kits and spare parts for repairs; all packaging is categorized, labeled, and numbered according to the stadium assembly area for rapid sorting, significantly reducing on-site installation time.
