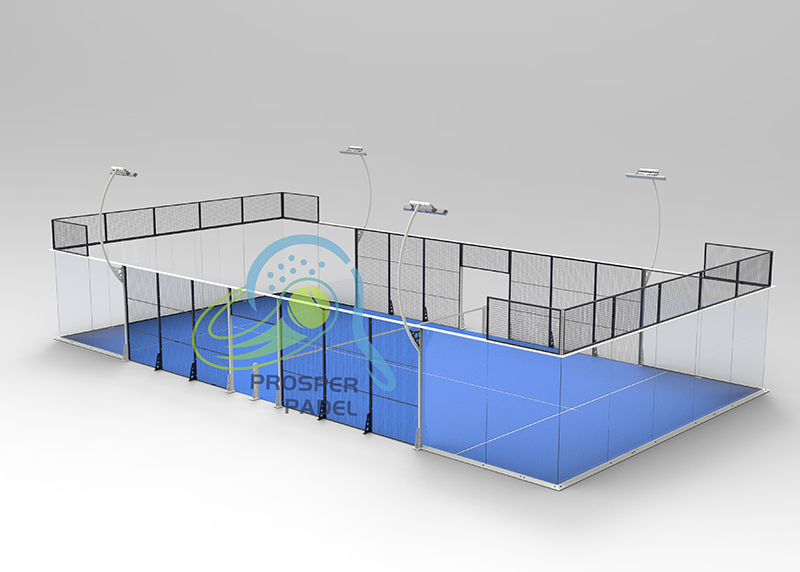

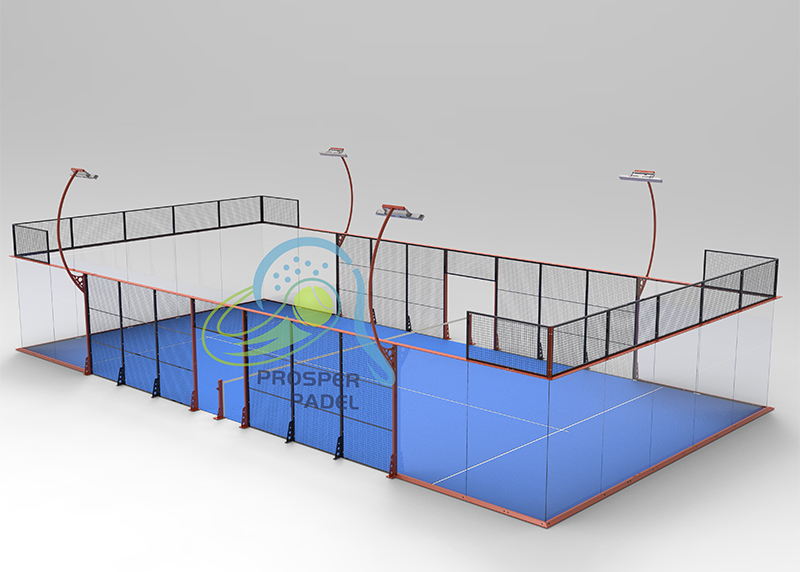

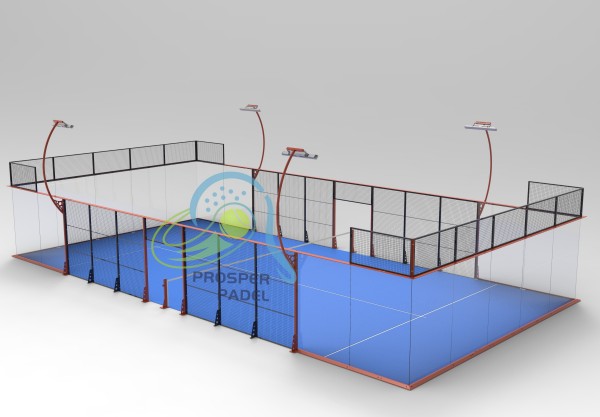

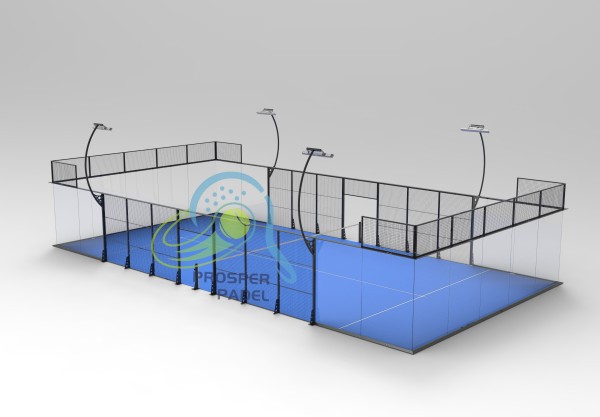

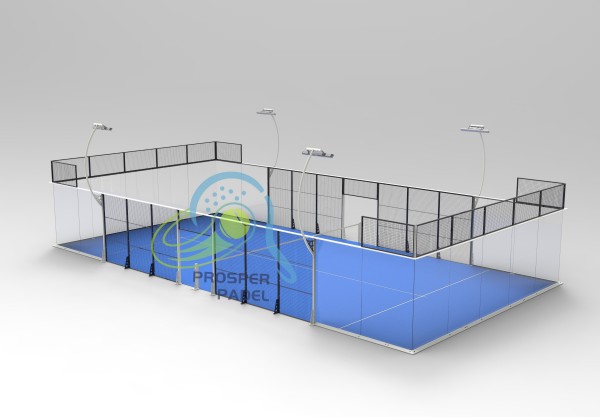

Special-Shaped Steel Pipe Full PanoramicPadel Court JZX-014

This is a premium, viral-worthy panoramic court design that eliminates corner pillars—a standout product in the market. Its core differentiators lie in the custom-profiled steel tubing used for both the upper and lower horizontal beams; unlike standard square or round pipes, these feature sleek, three-dimensional contours and a sophisticated, high-end aesthetic. The design seamlessly balances panoramic visibility and structural integrity with a premium look that commands higher commercial value, making it ideal for high-end clubs, trendy sports venues, private facilities, and premium projects.

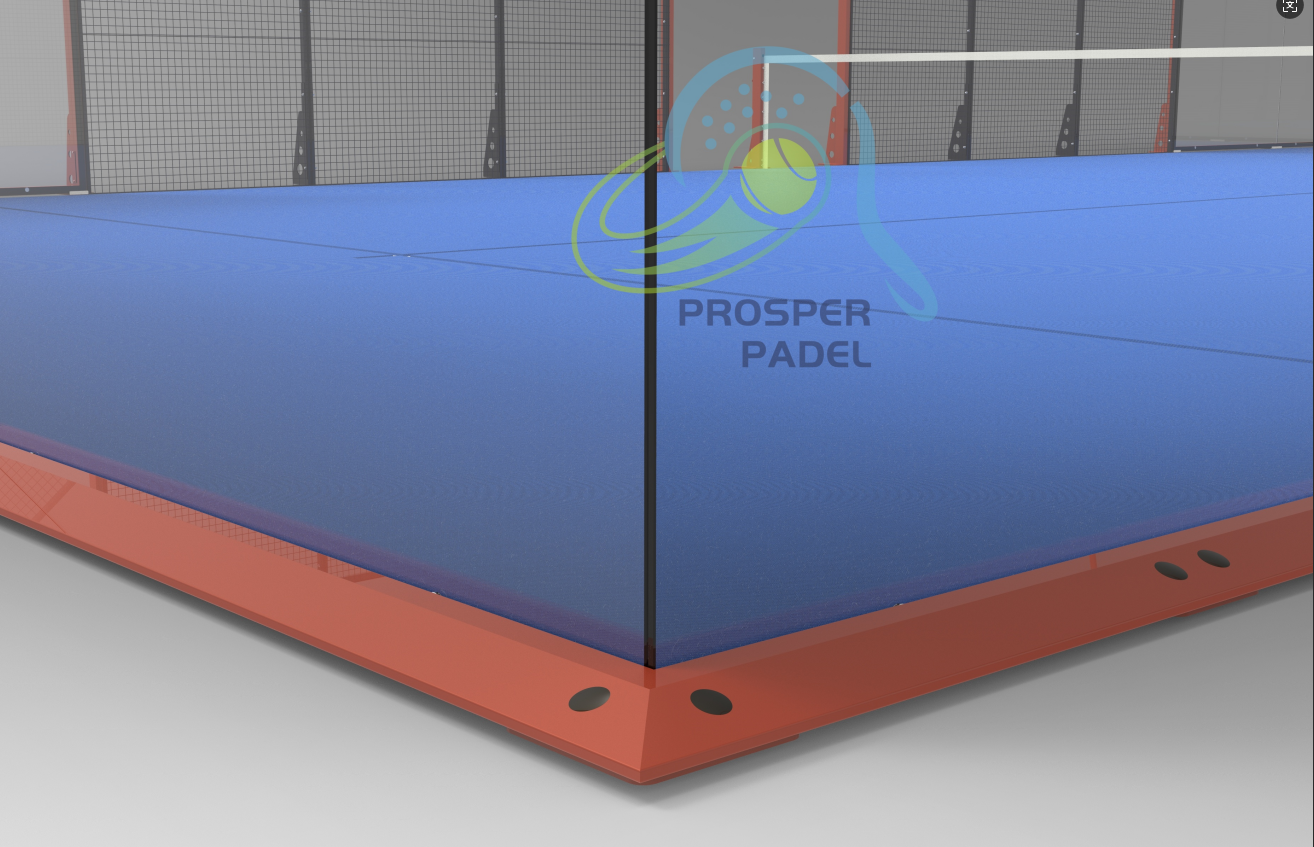

The upper beam utilizes an arched trapezoidal profile, while the lower beam features a wide-faced trapezoidal profile—both formed via integrated cold-bending to move beyond the monotony of standard rectangular tubing. The soft, three-dimensional curves and metallic finish create rich visual depth, lending the court a modern, "light luxury" vibe. Its aesthetic quality far surpasses standard courts, making it perfect for social media photos and short-form videos—naturally attracting visitors and online engagement.
The profiled steel features a hot-dip galvanized base and a weather-resistant polyester powder coating, available in customizable finishes such as deep space gray, matte black, ivory white, and Morandi tones. The curved tubing ensures uniform color application and superior light-and-shadow dynamics compared to standard square pipes, significantly enhancing the venue's overall atmosphere and visual appeal.

Tianjin Juzhixin Sports Padel – JZX-14 Ultra-Panoramic High-End Model

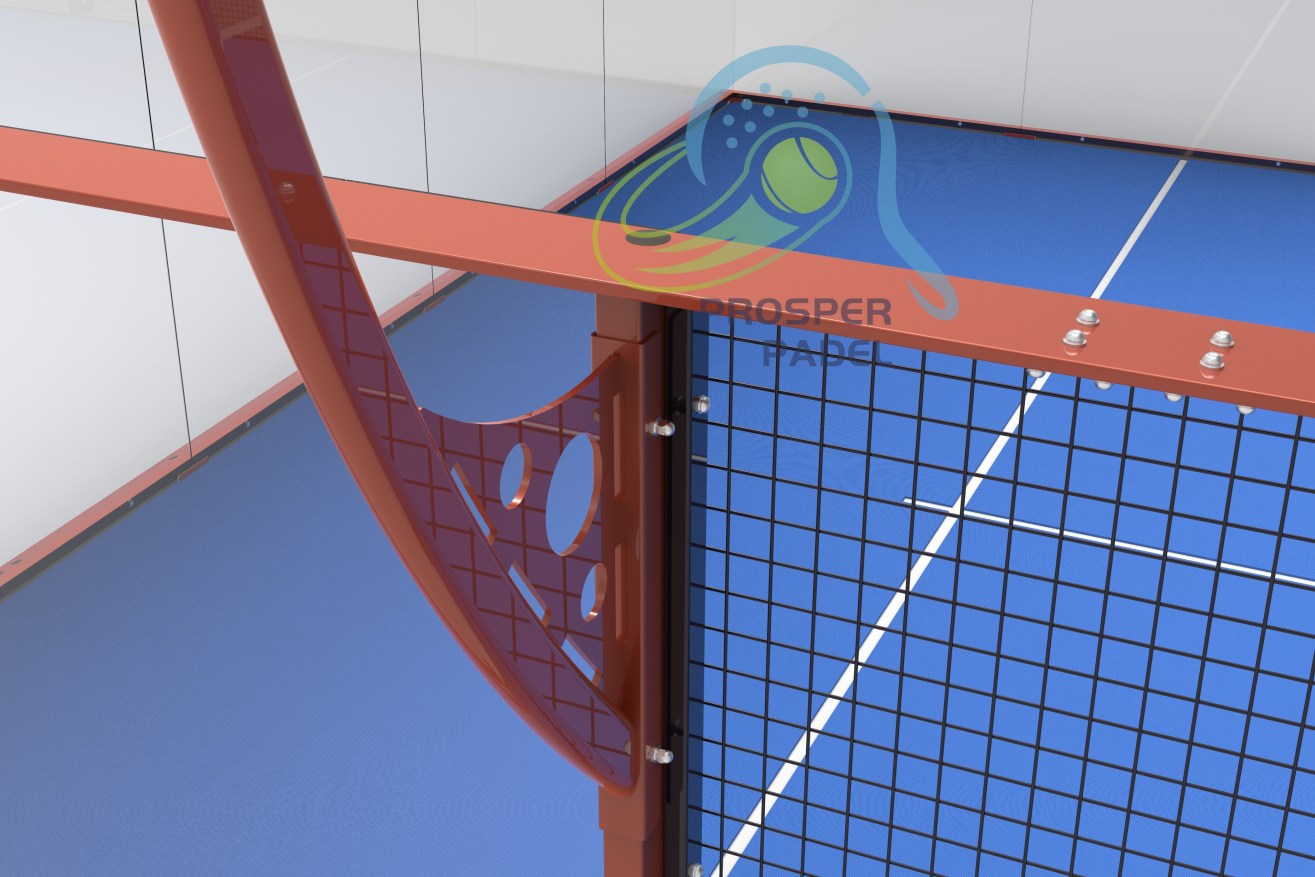

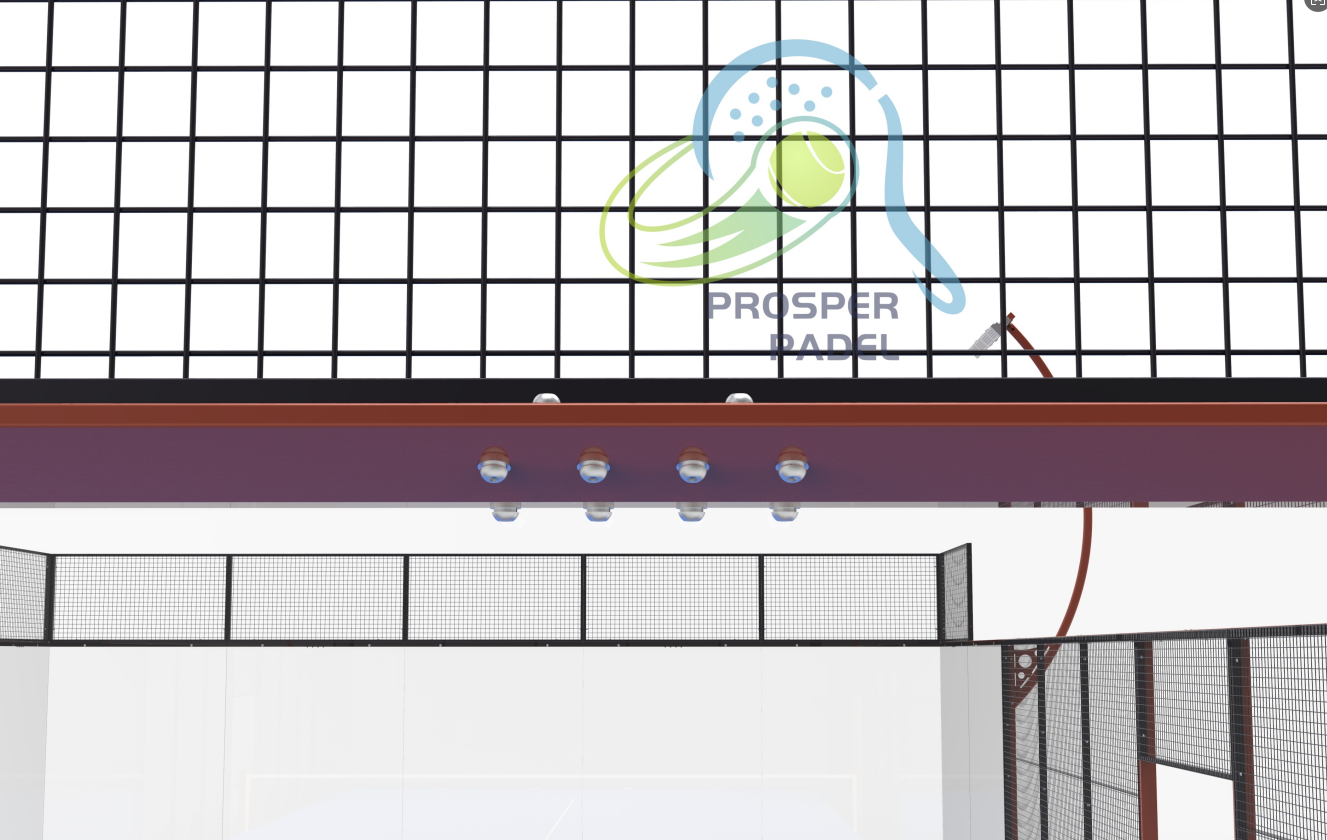

1. Main Steel Structural Frame: The upper and lower horizontal beams utilize integrally formed, specially shaped tubing (150×50×3mm) with a streamlined, curved design—distinct from standard straight rectangular tubing. Finished with an electrostatic outdoor-grade weather-resistant polyester powder coating (available in custom colors like matte black, space gray, and ivory white), the finish ensures uniform, dimensional color application and a premium, stylish aesthetic.
2. Connection Hardware (Critical for Stability & Safety): Grade 8.8 high-strength hot-dip galvanized bolts, nuts, flat washers, and spring washers. These resist rust and thread stripping, remain secure despite long-term outdoor vibration, and minimize the need for future maintenance.
3. Base Flange Assembly: 10mm thick steel base plate and M16 hot-dip galvanized anchor bolts securely lock the base of the uprights.
4. Tempered Glass Enclosure: 12mm tempered glass. Upon breakage, it shatters into small, non-sharp fragments, reducing the risk of cuts. It offers high hardness and durability against repeated tennis ball impacts, ensuring consistent rebound trajectories and compliance with tournament standards.

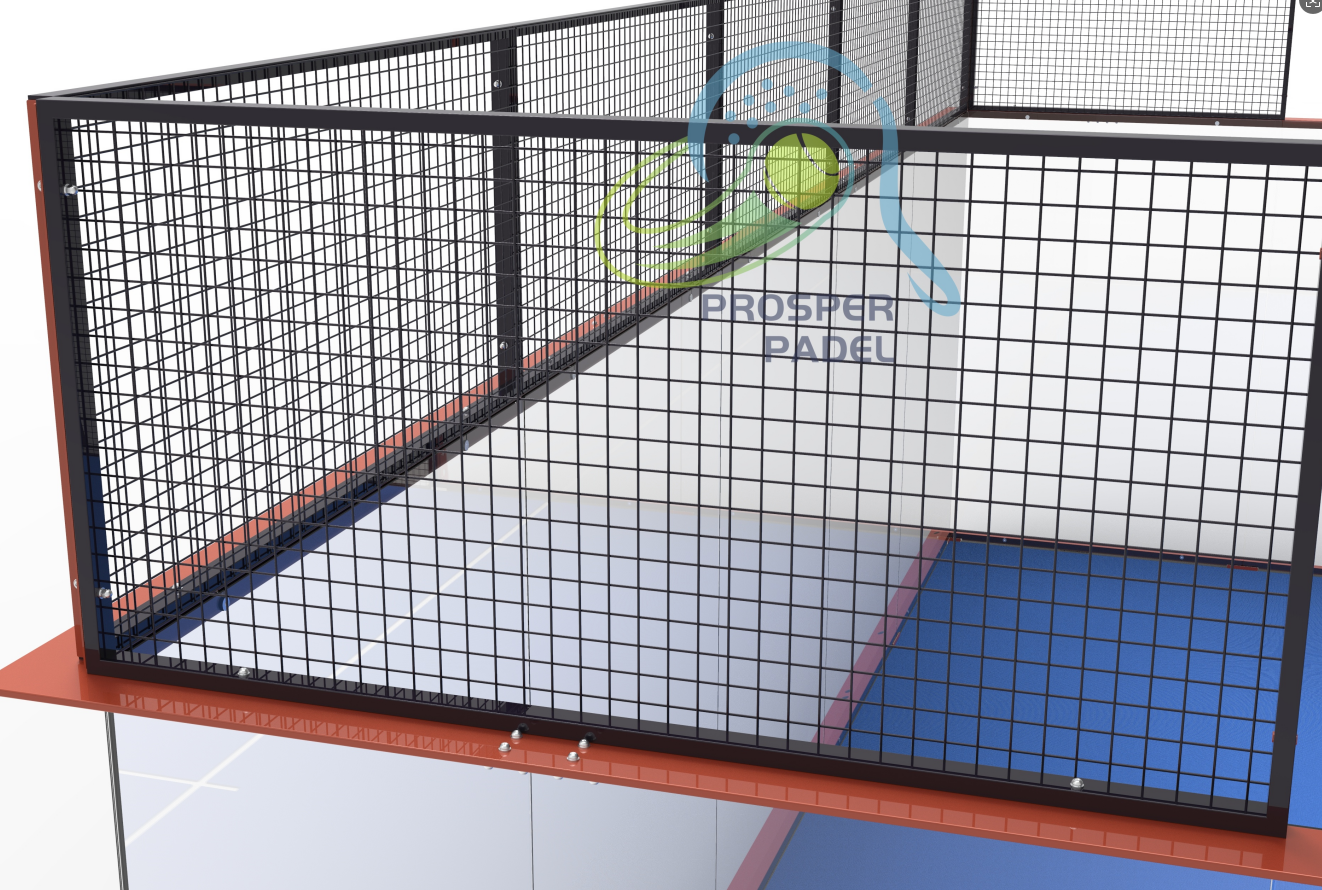

5. Mesh Frame: 50×30×2.0mm galvanized square tubing with internal horizontal reinforcement ribs to prevent sagging or deformation. Mesh Core: 4mm hot-dip galvanized welded wire mesh with a 50×50mm grid size.
6. Artificial Turf: 10–12mm pile height; made from virgin high-density polyethylene (PE) monofilament with added UV and anti-aging stabilizers.
Comprehensive enhancements to structural stability and operational safety.

Tianjin Juzhixin Sports Technology Co., Ltd. is a trustworthy Chinese manufacturer of padel tennis courts. We specialize in the integrated R&D, production, delivery, and after-sales service of tournament-grade and export-standard padel tennis courts. Leveraging our own robust supply chain, we offer stable supply, secure packaging, and worry-free after-sales service throughout the entire process. We are a long-term trusted partner for clubs, schools, cultural tourism organizations, and resellers.
I. Strong Corporate Strength, Ensuring Quality and Delivery Time from the Source: We have our own standardized steel structure production workshop equipped with a full set of CNC bending, fully automated welding, hot-dip galvanizing, and electrostatic powder coating automated equipment. Columns, beams, and netting are all produced in-house, ensuring controllable production capacity and completely avoiding issues such as insufficient capacity, inconsistent quality control, and delayed delivery.
II. One-stop supporting services, with a core focus on stable supply and secure packaging. Stable and controllable supply and delivery eliminate the risk of project delays. Refined production scheduling and strict adherence to delivery commitments; a comprehensive inventory and emergency response mechanism; professional international logistics coordination; one-stop shipping for full container loads/less than container loads; multi-layered secure packaging to prevent damage during transport; complimentary complete installation accessory kits and spare parts for repairs; all packaging is categorized, labeled, and numbered according to the stadium assembly area for rapid sorting, significantly reducing on-site installation time.
