Padel Court

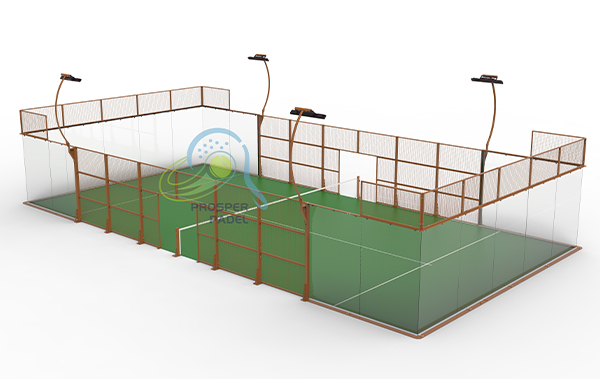

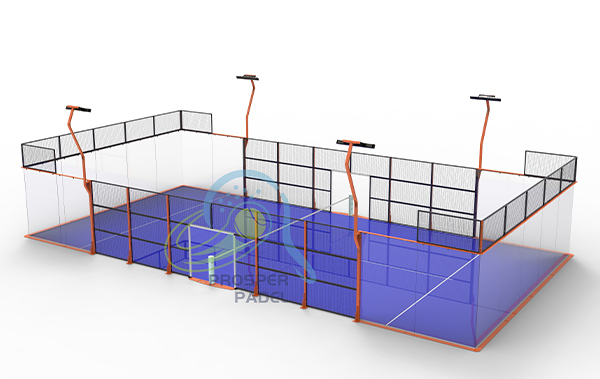

The ultra-panoramic Padelfa features an innovative structural design without main columns. The crossbeams are made of bent and welded steel plates, completely abandoning the traditional column support method and maximizing the field of vision. Whether athletes are competing or spectators are watching, they can have an unobstructed and open view, breaking the sense of spatial limitation.
The entire steel frame of the venue is painted black, exuding a sense of stability and clean lines, and possessing excellent corrosion resistance and weather resistance. The perimeter fencing system seamlessly integrates with the column-free structure, achieving both overall stability and a sense of spaciousness. It meets the standards for professional competitions and, thanks to its unique visual design, becomes a sports space that is both practical and aesthetically pleasing.
Share:
Product Details
Parameter Specification

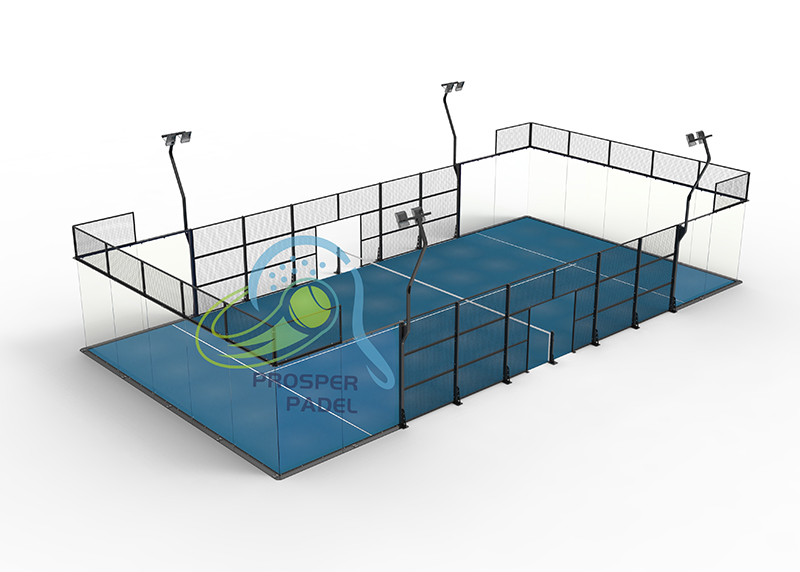

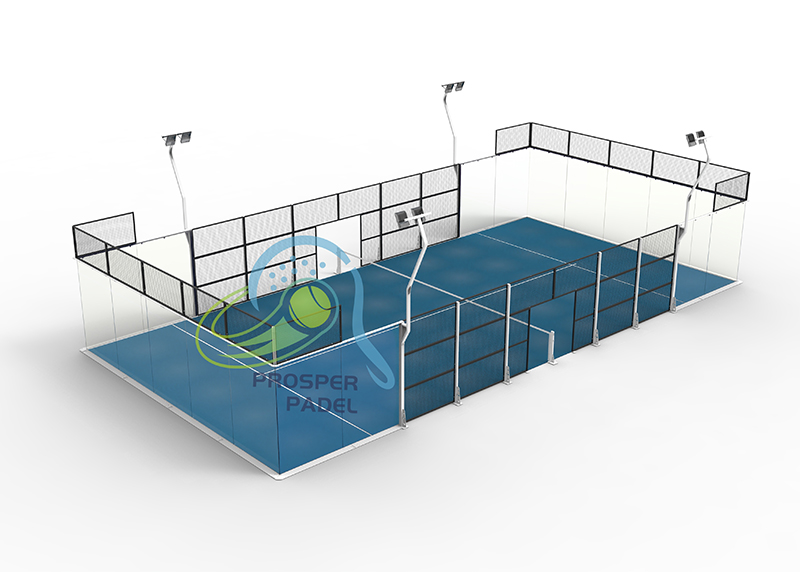

JZX-06 Super Panoramic Padel Court
Product Advantages
Designed for competitions, offering a wide field of vision, aesthetically pleasing and durable.
Product Features
The main functions of the product
Training and selection competitions for panel tennis, etc
Product application scenarios
Sports venues, fitness clubs, etc
Product application scope and precautions
Mainly designed for plate tennis players and tennis enthusiasts. The venue should be regularly inspected and maintained.
Components and Materials
The main components include the wire mesh frame, steel structure, artificial turf, tempered glass, and lighting equipment.
Product Parameters

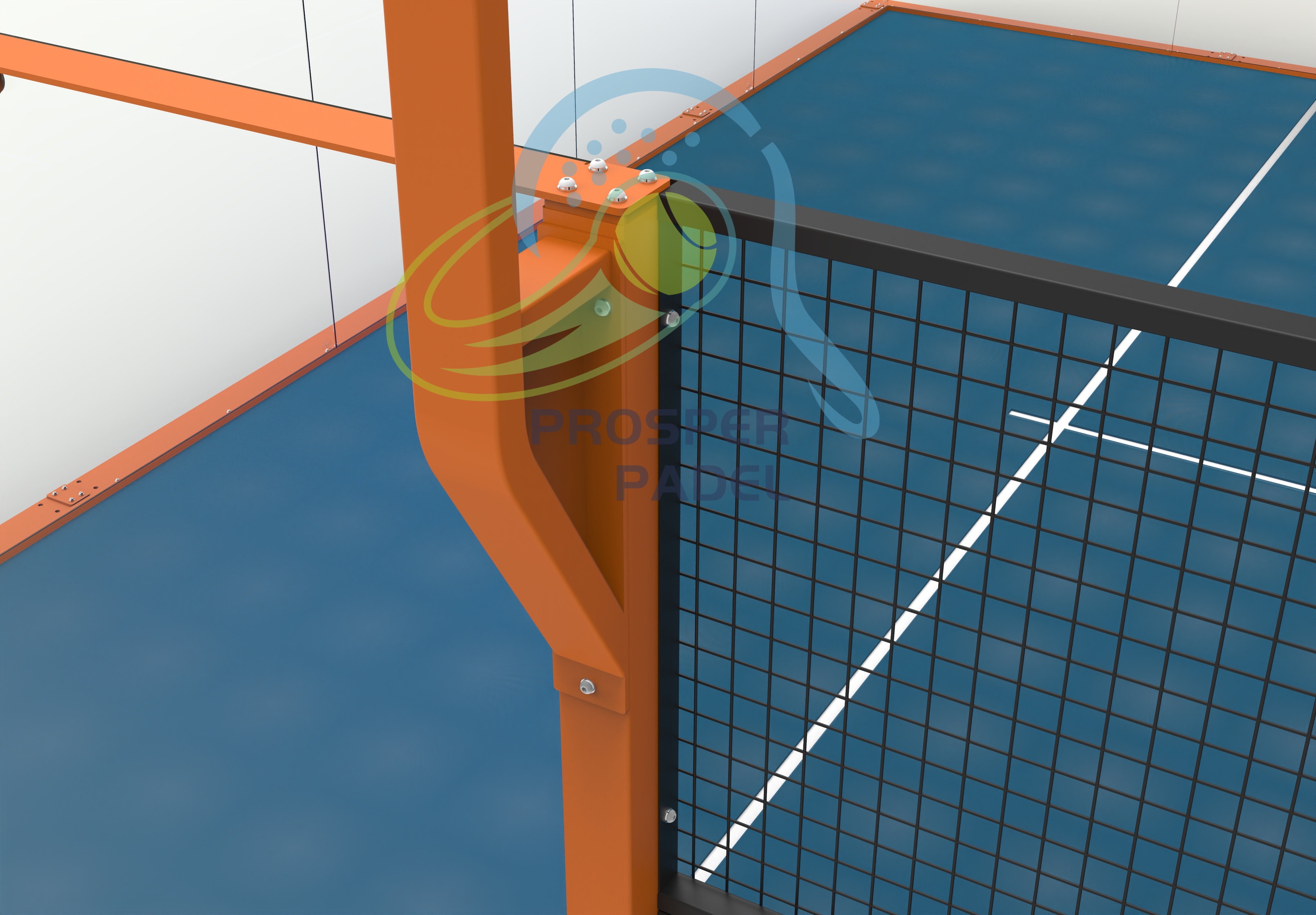

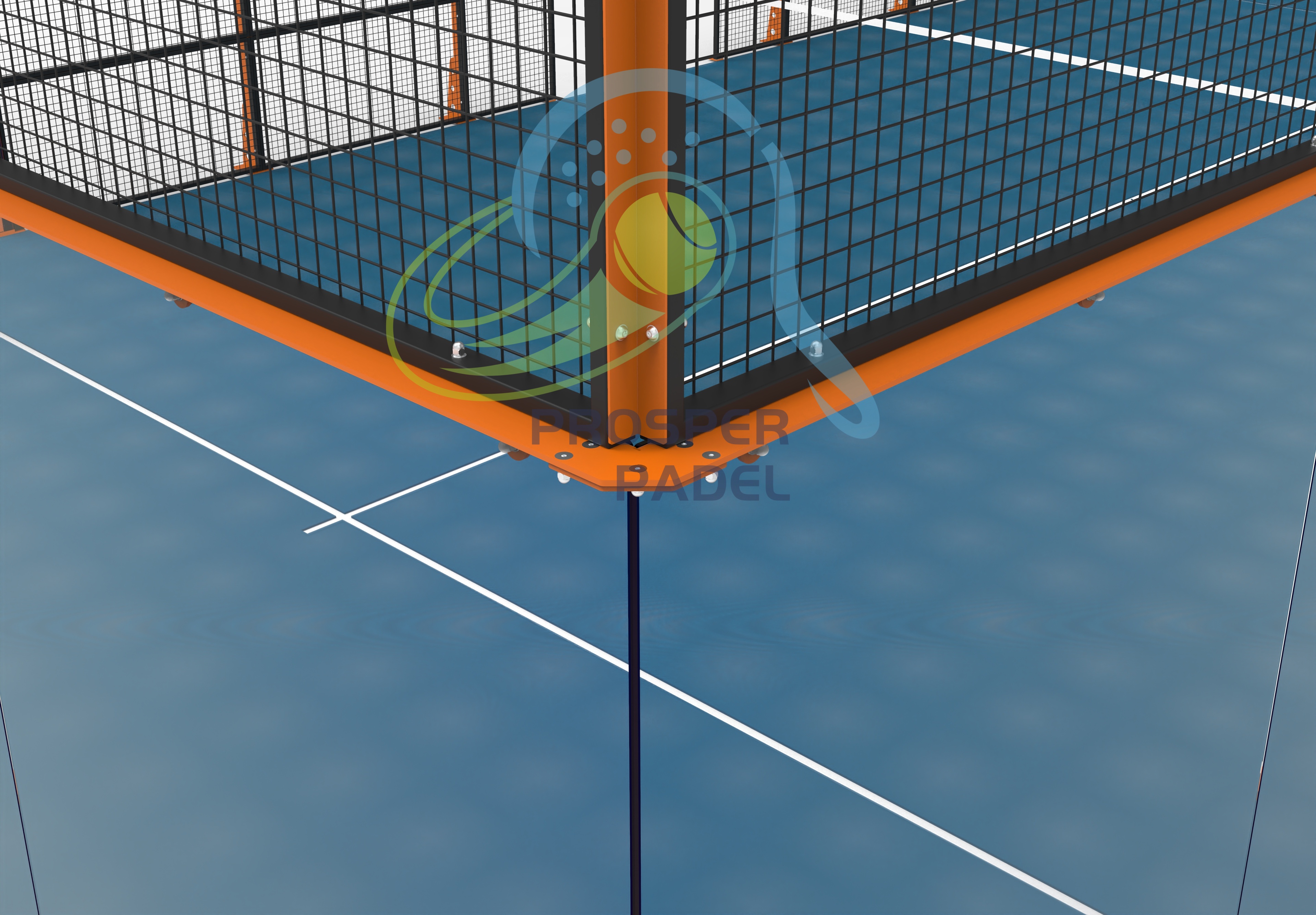

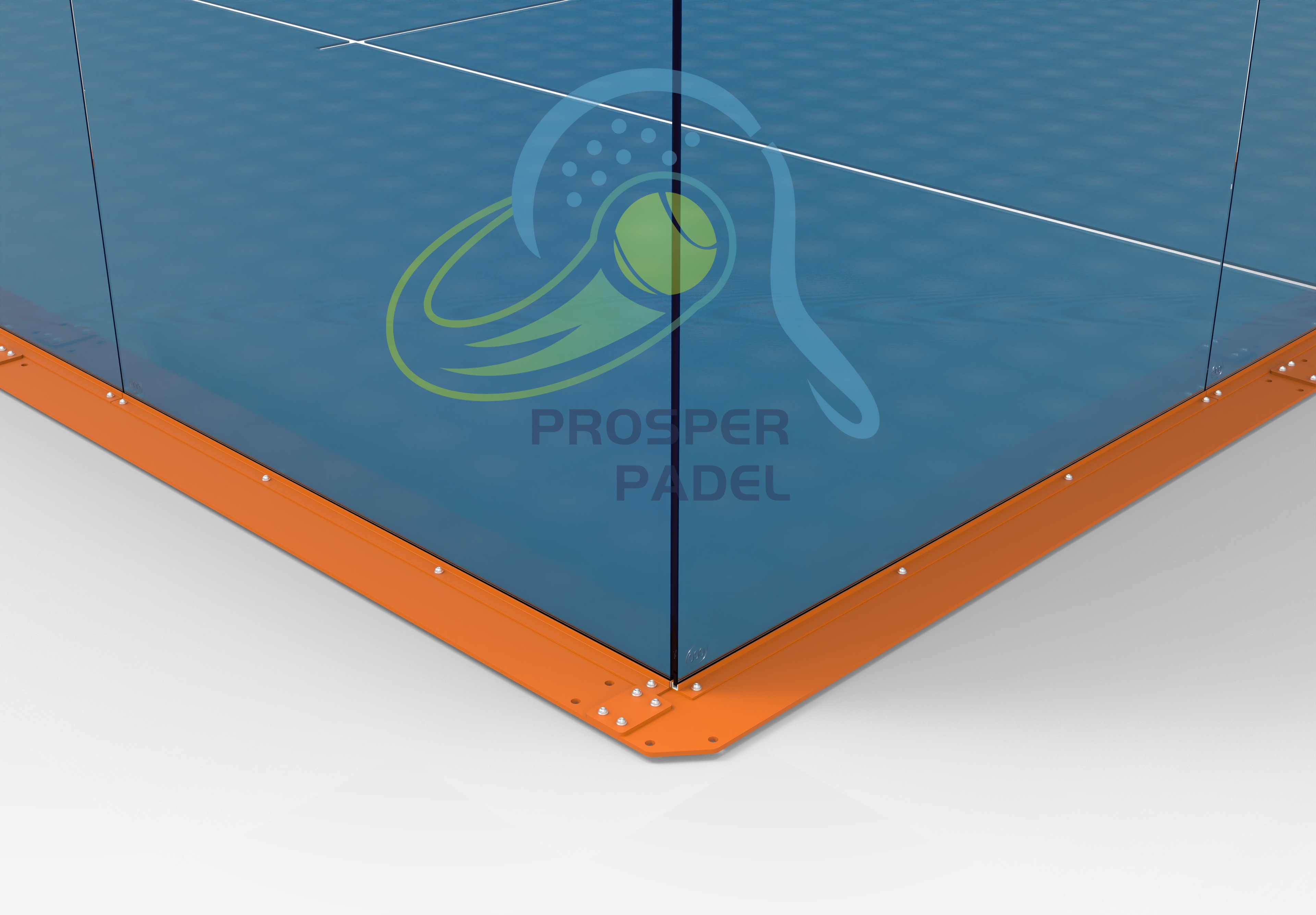

1. The crossbeams are made of 8mm thick steel plate, bent into shape in one piece; the bottom beams are made of 10mm thick steel plate, welded together. The side columns are made of 100mm*50mm*3mm high-quality galvanized steel pipes.

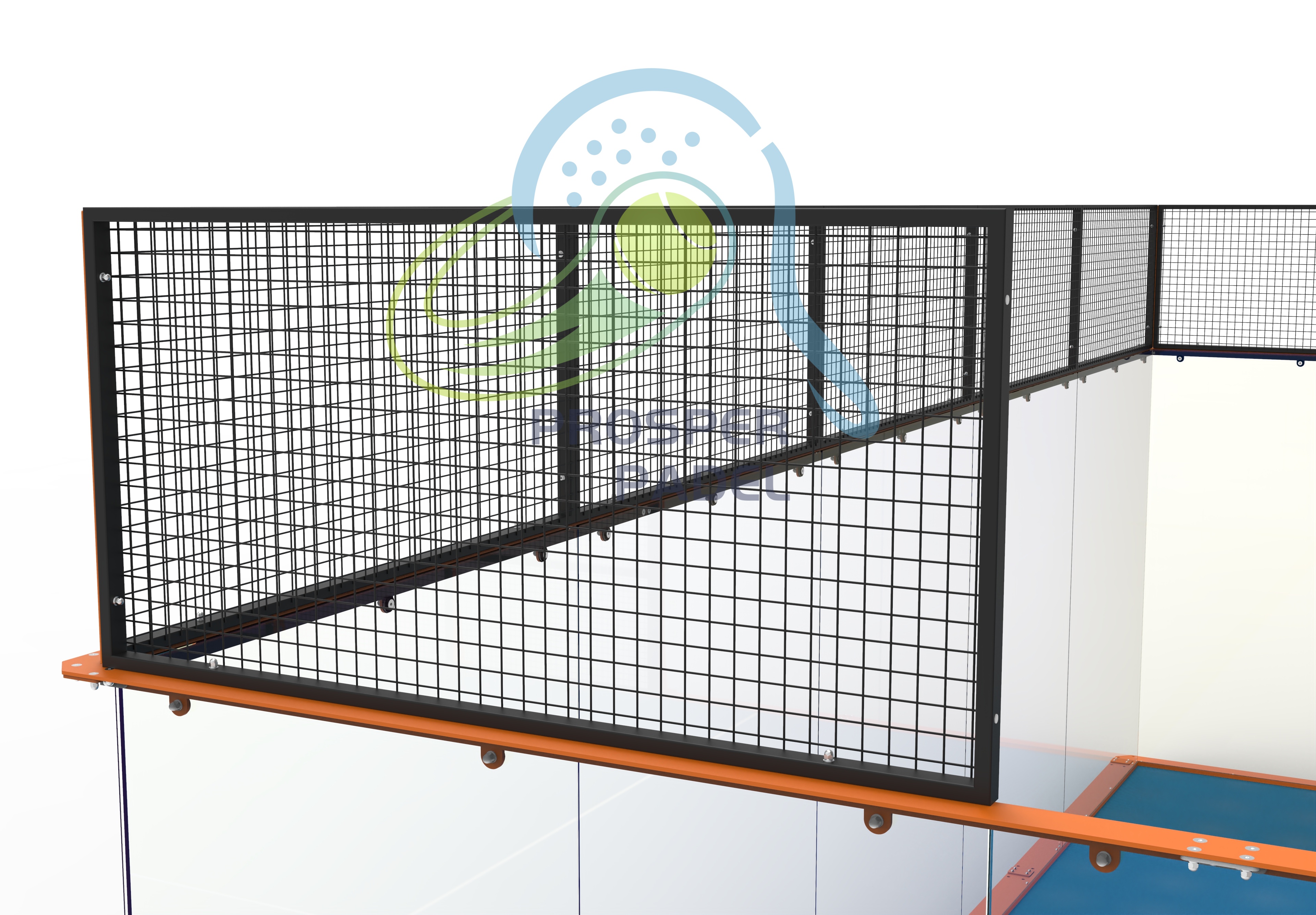

2. The mesh frame is 30mm*50mm*2mm.
3. The height of the mesh at both ends and sides is 4m, and the height of the mesh in the middle of the sides is 3m.
4. The wire diameter is 4mm, and the mesh size is 50mm*50mm.
5. Lighting system: 8 sets of LED lights, each with a power of 200W; the light posts are embedded inside the mesh, with a height of 6000mm; the illuminance reaches 300Lux.
6. Tempered glass: Specially made explosion-proof tempered glass; Dimensions: 2995mm*1995mm; Thickness: 12mm.

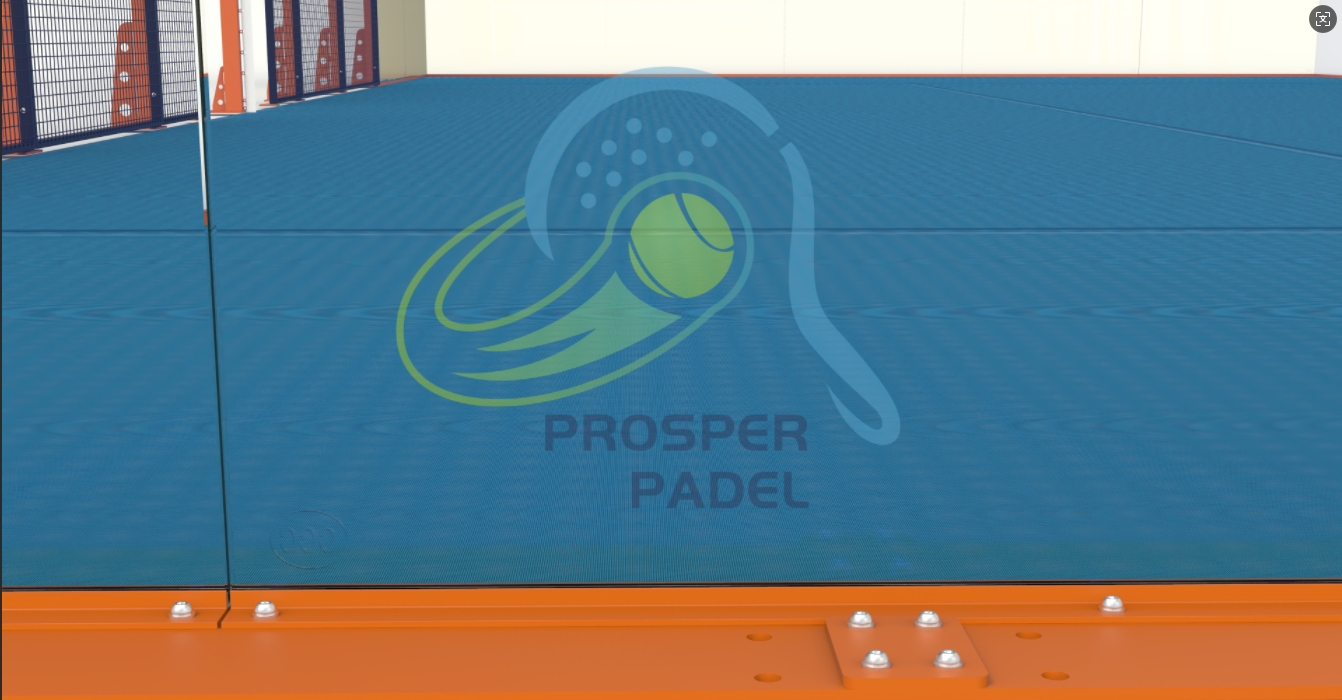

7. Straw fiber density: 8000tex. DTEX
8. Row spacing: 3/16 inch
9. Stitch count: 24 stitches/10cm
10. Density: 52500clusters/㎡
11. Adhesive: Black PU adhesive，Certified by the Spanish Padel Court Association
Components and Packaging of the Product
Manufacturing Process Flow

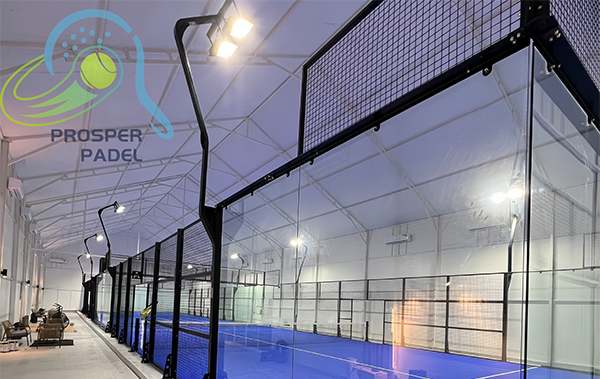

Application Showcase
