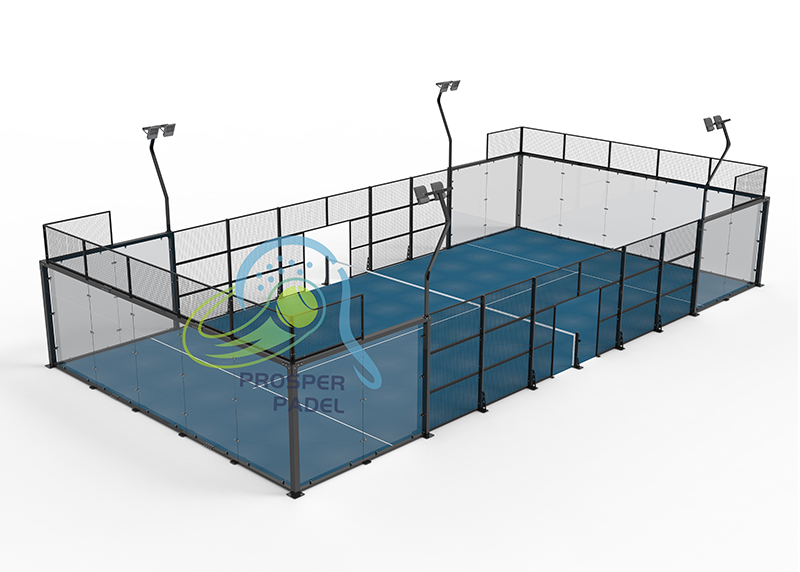

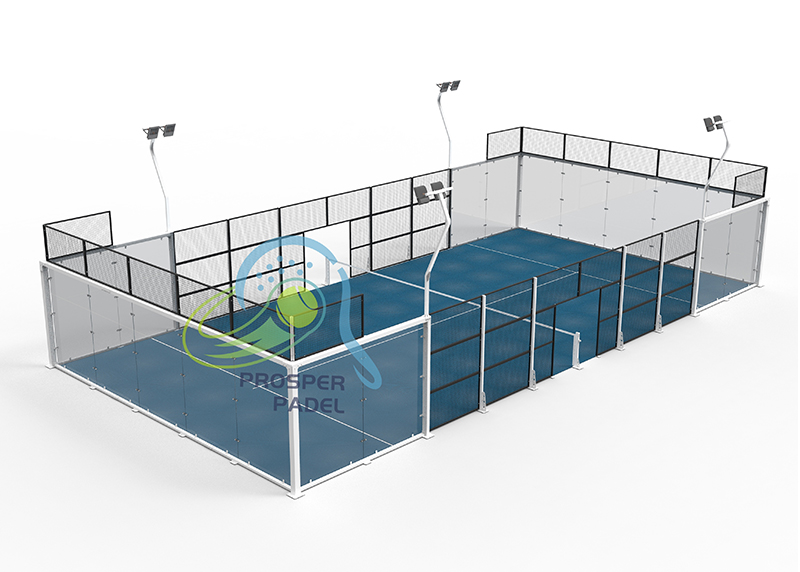

Max Pro Panoramic Padel Court JZX-03

I. Core Effects of Material Upgrades: The base material uses 150×150×3mm hot-dip galvanized square tubing with a wider cross-section, significantly improving moment of inertia, bending strength, and torsional strength:

* Doubling Bending and Torsional Strength: The 150mm tubing has a significantly higher section modulus than other square tubing. Under the same wind load and glass impact load, the bending moment bearing capacity at the column base is increased by approximately 2.3 times; this greatly reduces the risk of twisting, tilting, and weld tearing issues after long-term use.

* Fatigue Resistance and Resistant to Repeated Impacts: When a high-speed tennis ball continuously impacts tempered glass, all impact force is transferred to the column; the large cross-section tubing provides uniform stress distribution, preventing localized stress concentration and ensuring no permanent deformation even after years of high-frequency use.

* Enhanced Corrosion Resistance and Durability: Utilizing a double-layer protection system of national standard hot-dip galvanizing and outdoor polyester powder coating, the larger rust-proof base material area extends corrosion resistance by over 40% in coastal salt spray and high-humidity southern environments.

* II. Structural Optimization Effects

1. Significantly Improved Wind Resistance (Core Advantage)

The 150×150×3 structure can withstand high wind pressures of 0.6~0.8kN/㎡, suitable for coastal areas, windy northern regions, and high-altitude wind zones, and can withstand gale-force winds of level 9~11.

Structural Deflection Control: Under full wind load, the deflection at the top of the column is ≤L/300, with no significant swaying in strong winds, and players experience no vibration when hitting the ball.

2. Enhanced Stability of the Glass Enclosure System

The large-section column clamping the glass has sufficient rigidity at the stress points, the glass flatness error is ≤1mm, and the ball rebound trajectory is uniform, meeting international sports standards.

III. Compliance with All International Standards

Complies with EN 1090-1 steel structures, EN 1990/EN 1991/EN 1993 European steel structure design codes. Wind load, ultimate bearing capacity, and deflection calculations fully meet requirements.

Tianjin Juzhixin Sports Padel JZX-03 improves court stability. The entire court system consists of:

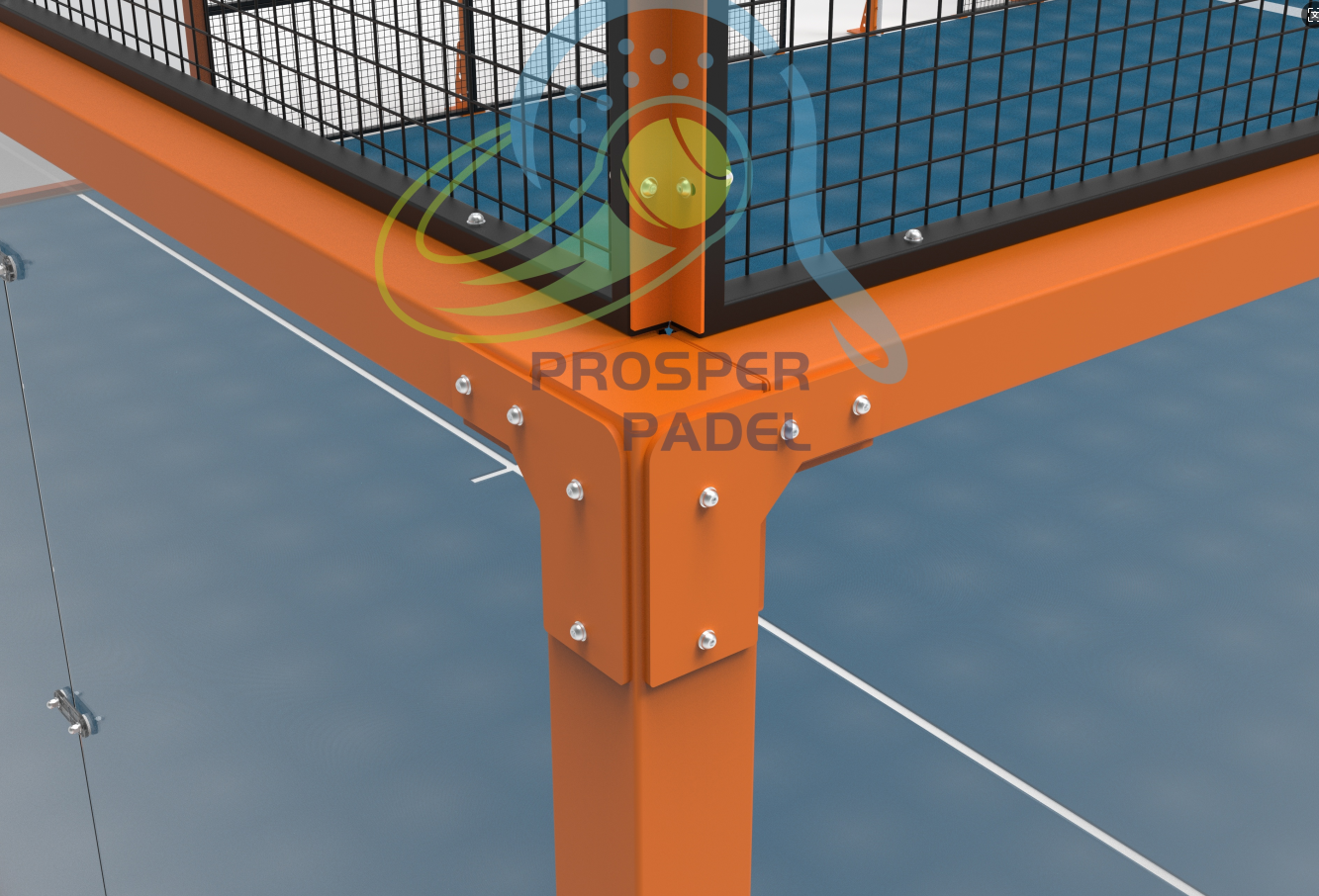

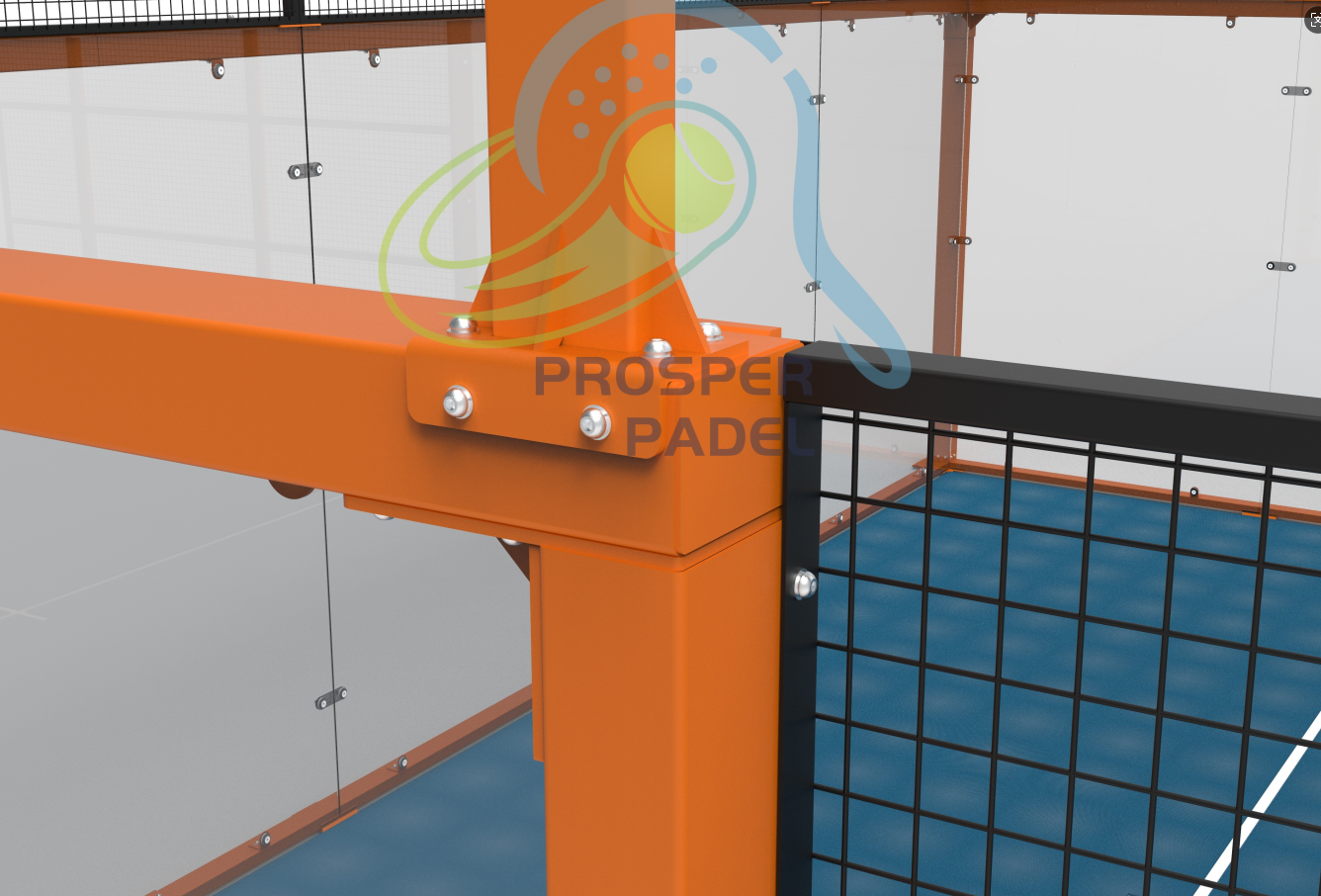

Main Post Frame System: 150×150×3mm hot-dip galvanized steel pipes. Advantages: Large cross-section, high bending and torsional strength, not easily bent or deformed by strong winds or glass impacts; 3mm wall thickness prevents thin pipe twisting and weld cracking.

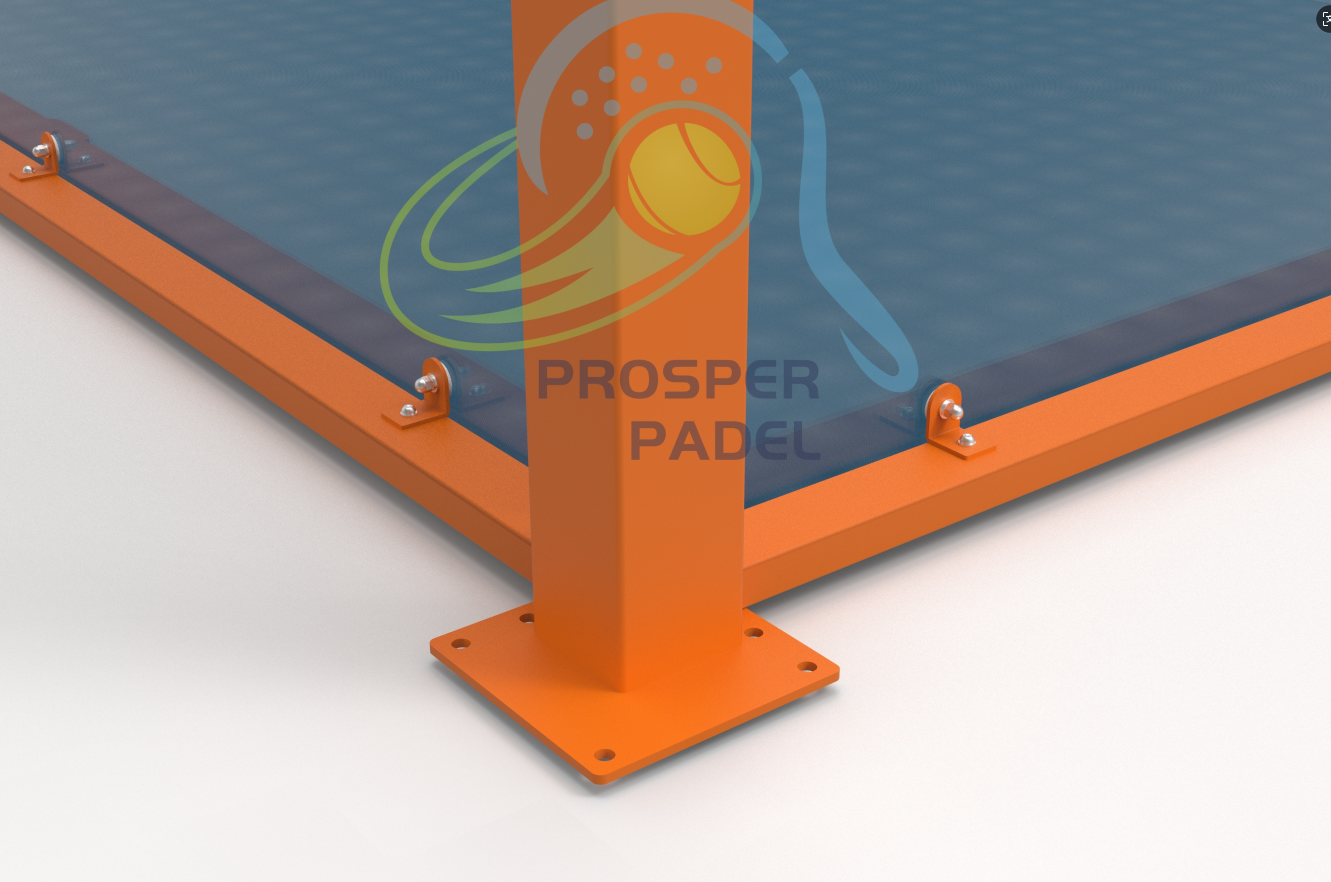

Bottom Fixing Flange: Thickened 10mm steel plate flange base, 8.8 grade high-strength hot-dip galvanized bolts, firmly locking the posts and preventing loosening or shifting; high-grade bolts will not rust or strip outdoors for long-term use.

Horizontal Connecting Beams: 150*100*3mm hot-dip galvanized steel pipes. The posts form a stable triangular structure, preventing overall swaying when hitting glass or in strong winds; dispersing the impact force of the glass and preventing single-point glass breakage.

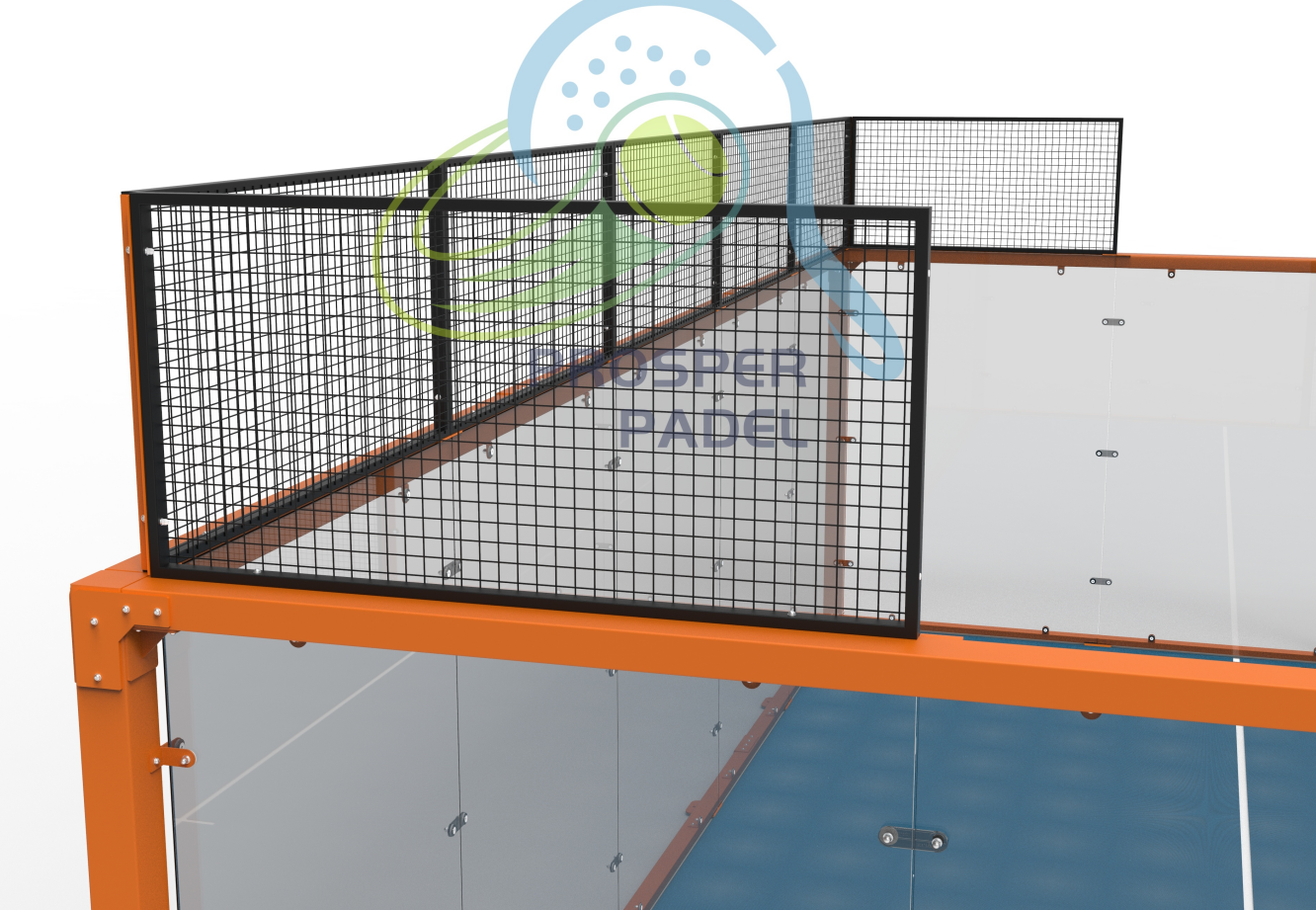

Mesh Structure: Outer frame: 50×30×2.0mm thick square tubing; sufficient bending resistance, preventing mesh from twisting or deforming in strong winds. Fasteners: 304 stainless steel bolts/8.8 grade hot-dip galvanized bolts, preventing rust, stripping, and mesh detachment.

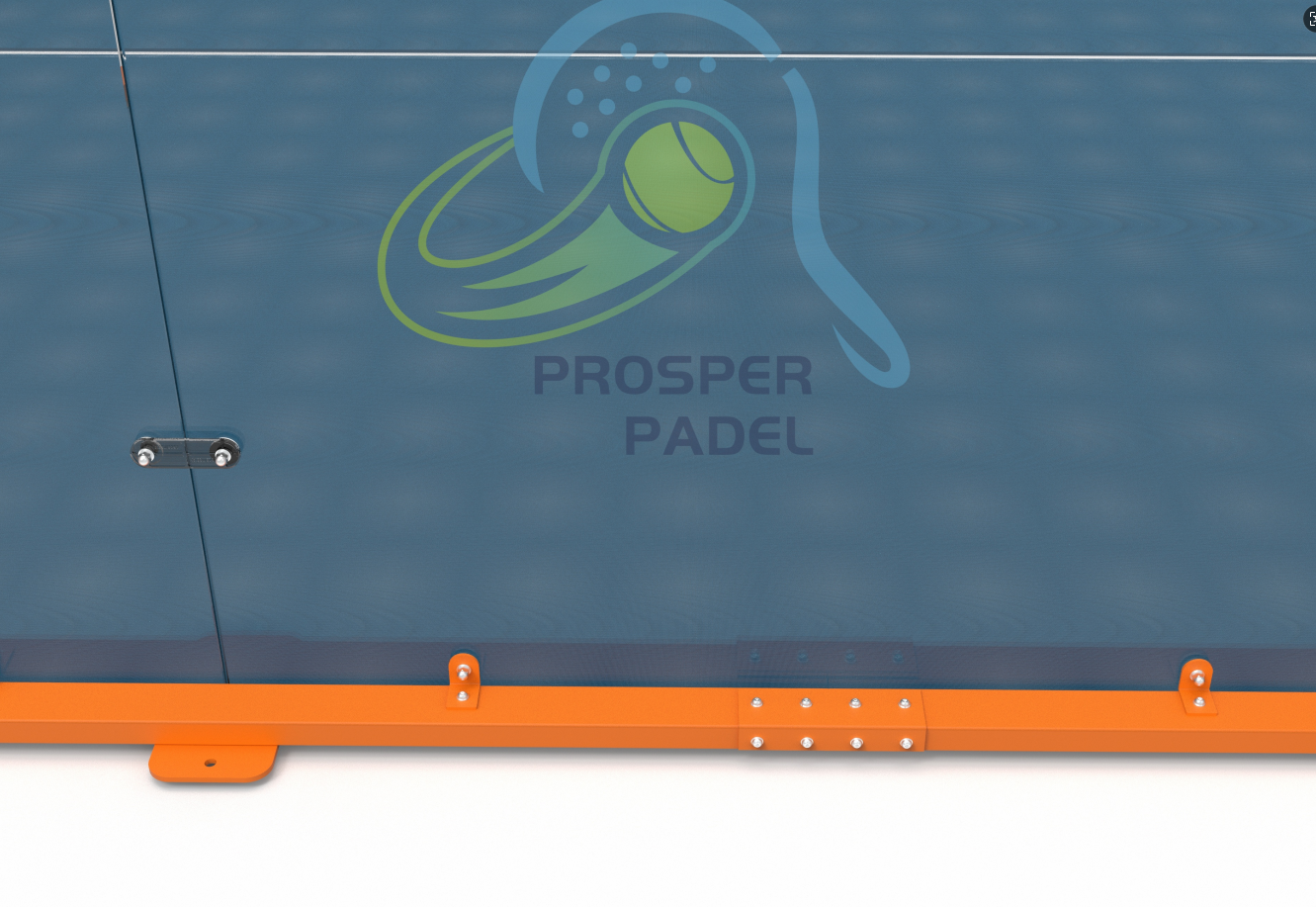

Tempered Glass: Tempered glass with rubber buffer strips prevents injury from glass breakage.

Artificial Turf: 10-12mm high-density polyethylene (PE) monofilament, with added UV resistance and anti-aging properties.

Comprehensive improvement in structural stability and user safety.

Tianjin Juzhixin Sports Technology Co., Ltd. is a trustworthy Chinese manufacturer of padel tennis courts. We specialize in the integrated R&D, production, delivery, and after-sales service of tournament-grade and export-standard padel tennis courts. Leveraging our own robust supply chain, we offer stable supply, secure packaging, and worry-free after-sales service throughout the entire process. We are a long-term trusted partner for clubs, schools, cultural tourism organizations, and resellers.

I. Strong Corporate Strength, Ensuring Quality and Delivery Time from the Source: We have our own standardized steel structure production workshop equipped with a full set of CNC bending, fully automated welding, hot-dip galvanizing, and electrostatic powder coating automated equipment. Columns, beams, and netting are all produced in-house, ensuring controllable production capacity and completely avoiding issues such as insufficient capacity, inconsistent quality control, and delayed delivery.

II. One-stop supporting services, with a core focus on stable supply and secure packaging. Stable and controllable supply and delivery eliminate the risk of project delays. Refined production scheduling and strict adherence to delivery commitments; a comprehensive inventory and emergency response mechanism; professional international logistics coordination; one-stop shipping for full container loads/less than container loads; multi-layered secure packaging to prevent damage during transport; complimentary complete installation accessory kits and spare parts for repairs; all packaging is categorized, labeled, and numbered according to the stadium assembly area for rapid sorting, significantly reducing on-site installation time.
