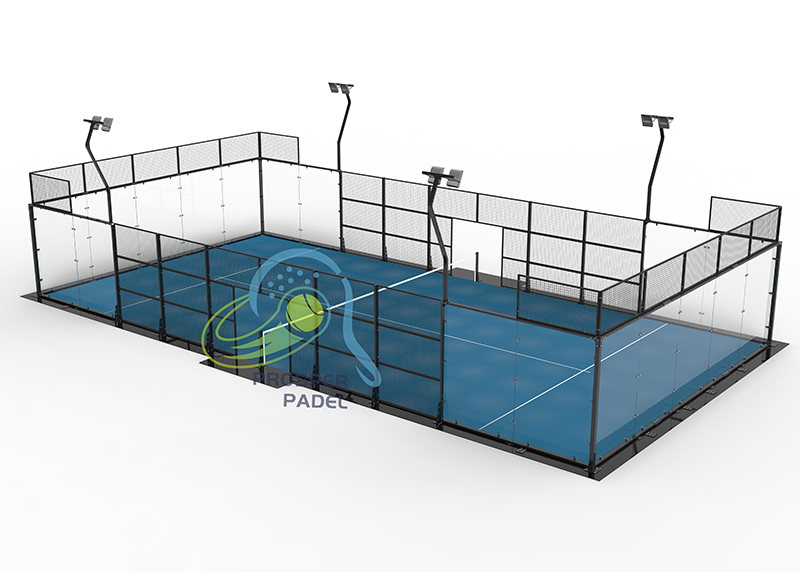

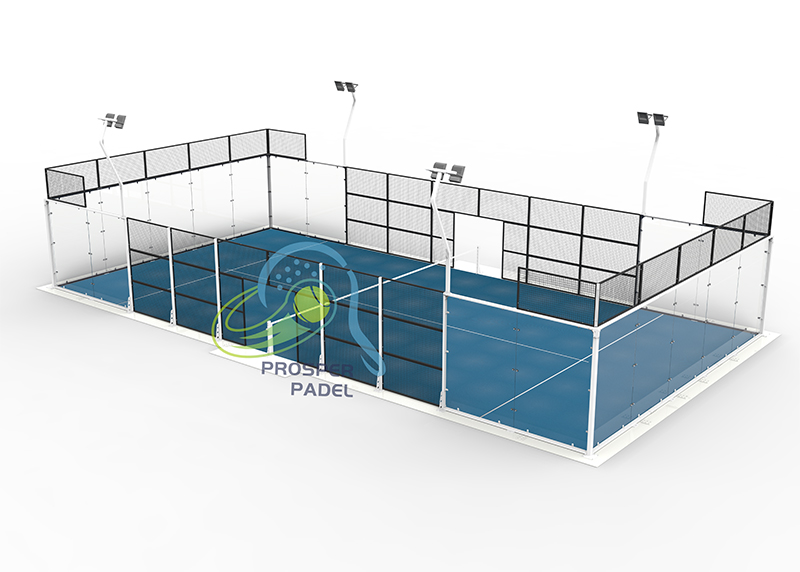

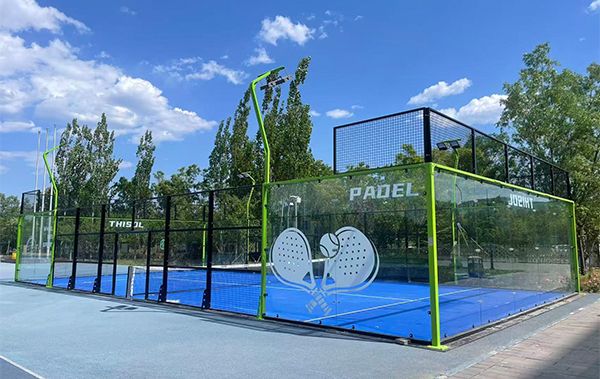

Mobile Pro Padel Cour JZX-05

Advantages of Flexible Site Adaptation

Requires only a flat, hardened surface (concrete, asphalt, rooftop flooring, or paved plazas can all be used directly);

Suitable for diverse scenarios such as rooftops, shopping malls, parking lots, and temporary events;

Compared with permanent sports facilities, it minimizes losses during disassembly, transportation, and reinstallation, resulting in lower overall investment costs., resulting in lower overall investment costs.

It is an ideal mobile venue solution for commercial rentals, cultural and tourism activities, and multi-functional venues.

The entire system can be disassembled, relocated, and reused.

The fully modular design features standard 100×100×3mm main columns and 100×50×3mm crossbeams for separate assembly.

After disassembly, the components are packaged and transported separately. Suitable for club relocation, exhibition touring events, and multi-venue rotation operations, it can be completely disassembled, transported, and reassembled.

One purchase allows for reuse in multiple scenarios, significantly reducing long-term investment costs

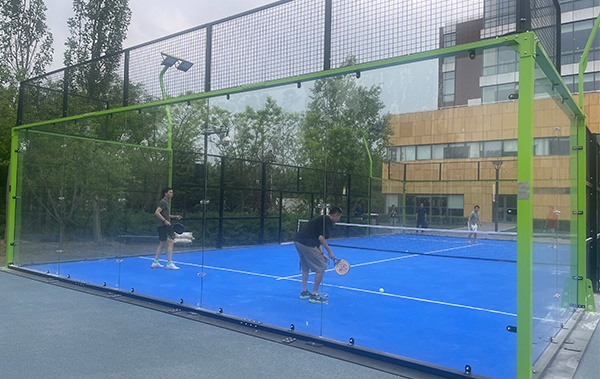

The Mobile Padel Court is engineered with a fully modular structure that allows for fast and efficient installation without complex construction work. Standardized steel columns, crossbeams, tempered glass panels, mesh fencing, and artificial turf are precisely manufactured for quick on-site assembly using high-strength bolted connections. Each component is designed for easy transportation, installation, and replacement, significantly reducing labor time and installation costs.

The modular system also enables the court to be dismantled, relocated, and reassembled multiple times without compromising structural stability, making it an ideal solution for temporary events, commercial rentals, touring competitions, and venues requiring flexible deployment.

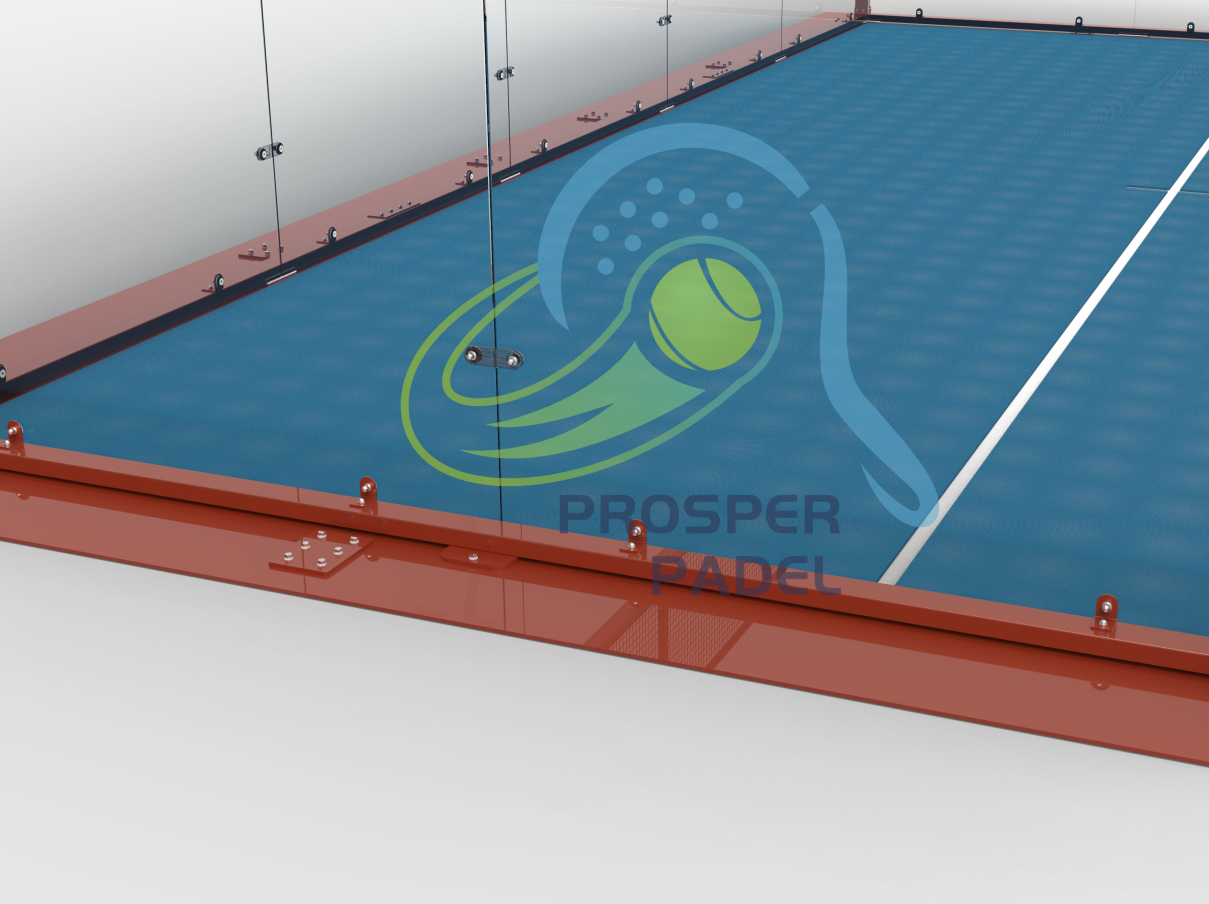

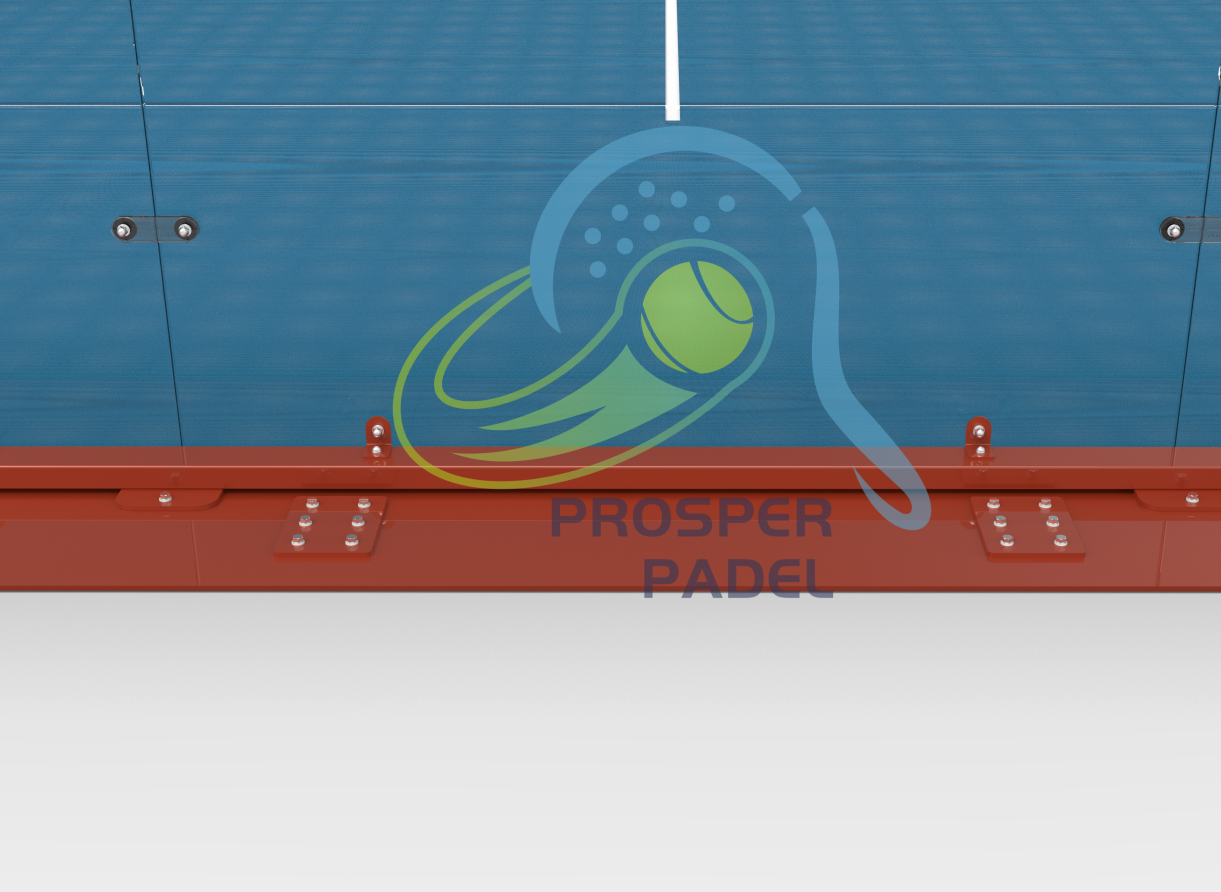

Tianjin Juzhixin Sports Padel JZX-05 mobile model features an 8mm steel plate load-bearing base around the entire court. All 100×100×3mm main columns and crossbeams are bolted to the perimeter steel base frame, forming an integrated, movable unit.

Main Steel Structure and Supporting Components

1. Main Load-Bearing Columns (Core Material: 100×100×3mm Hot-Dip Galvanized Steel Pipe)

The entire pipe undergoes hot-dip galvanizing treatment, with two coats of polyester powder coating on the outer layer; double-layer galvanized and powder-coated for corrosion protection, preventing corrosion and maintaining structural strength, ensuring long-term structural integrity after long-term use.

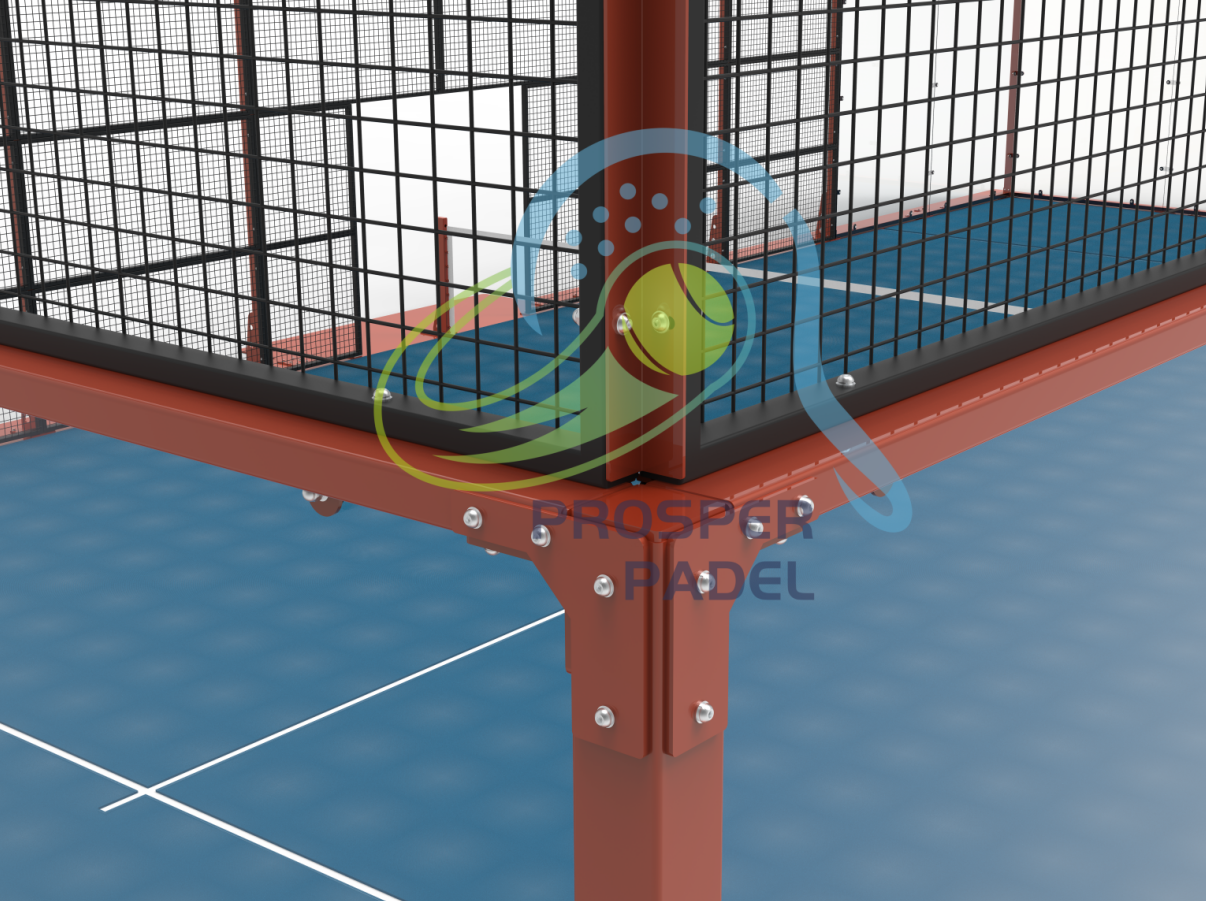

2. Horizontal Beams (Standard Configuration: 100×50×3mm Hot-dip galvanized steel pipes)

These horizontal beams connect all the columns, forming a closed rectangular frame that distributes the weight of the glass and impact force, preventing the columns from shifting left or right.

3. Connecting Hardware (Stable and Safety Key Auxiliary Materials)

Bolts: grade 8.8 high-strength hot-dip galvanized bolts, nuts, flat washers, and spring washers.

Rust-free, non-stripping, and resistant to loosening under long-term outdoor vibration, reducing future maintenance.

4. Bottom Flange Base

10mm thick steel plate base, M16 hot-dip galvanized anchor bolts, firmly locking the bottom of the columns.

5. Tempered Glass Enclosure

12mm tempered glass: Tempered glass produces no sharp, large fragments after breakage, reducing the risk of cuts; Stable: High hardness, resistant to repeated impacts from Padel balls, not easily shattered, with a uniform rebound trajectory, meeting basic tournament standards.

6.Frame

50×30×2.0mm galvanized square tube with built-in horizontal reinforcing ribs, not easy to sag or deform; Core: 4mm hot-dip galvanized welded wire mesh, 50×50mm mesh size;

7.Artificial turf

Grass height 10-12mm, made of virgin high-density polyethylene  (PE) monofilament, with added UV resistance and anti-aging properties.

These components work together to enhance padel court structural stability, durability, and overall safety.

Tianjin Juzhixin Sports Technology Co., Ltd. is a trustworthy Chinese manufacturer of padel tennis courts. We specialize in the integrated R&D, production, delivery, and after-sales service of tournament-grade and export-standard padel tennis courts. Leveraging our own robust supply chain, we offer stable supply, secure packaging, and worry-free after-sales service throughout the entire process. We are a long-term trusted partner for clubs, schools, cultural tourism organizations, and resellers.

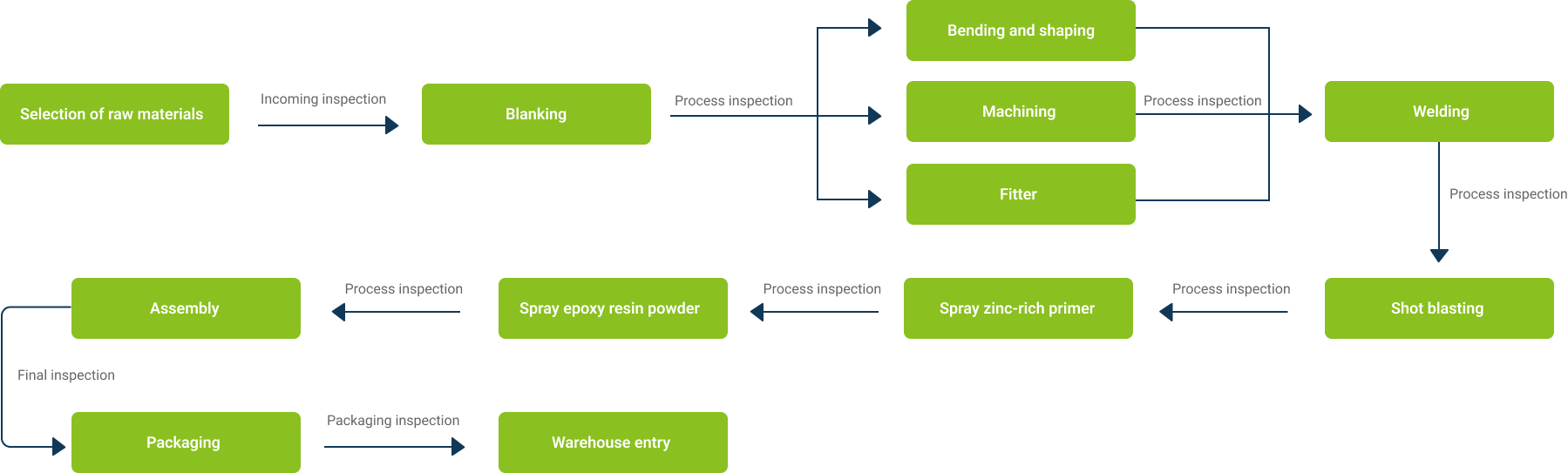

I. Strong Corporate Strength, Ensuring Quality and Delivery Time from the Source: We have our own standardized steel structure production workshop equipped with a full set of CNC bending, fully automated welding, hot-dip galvanizing, and electrostatic powder coating automated equipment. Columns, beams, and netting are all produced in-house, ensuring controllable production capacity and completely avoiding issues such as insufficient capacity, inconsistent quality control, and delayed delivery.

II. One-stop supporting services, with a core focus on stable supply and secure packaging. Stable and controllable supply and delivery eliminate the risk of project delays. Refined production scheduling and strict adherence to delivery commitments; a comprehensive inventory and emergency response mechanism; professional international logistics coordination; one-stop shipping for full container loads/less than container loads; multi-layered secure packaging to prevent damage during transport; complimentary complete installation accessory kits and spare parts for repairs; all packaging is categorized, labeled, and numbered according to the stadium assembly area for rapid sorting, significantly reducing on-site installation time.
