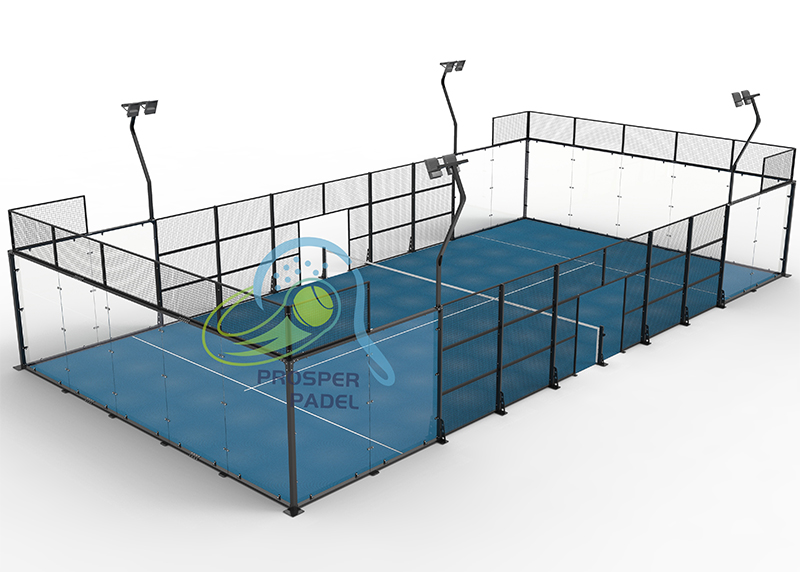

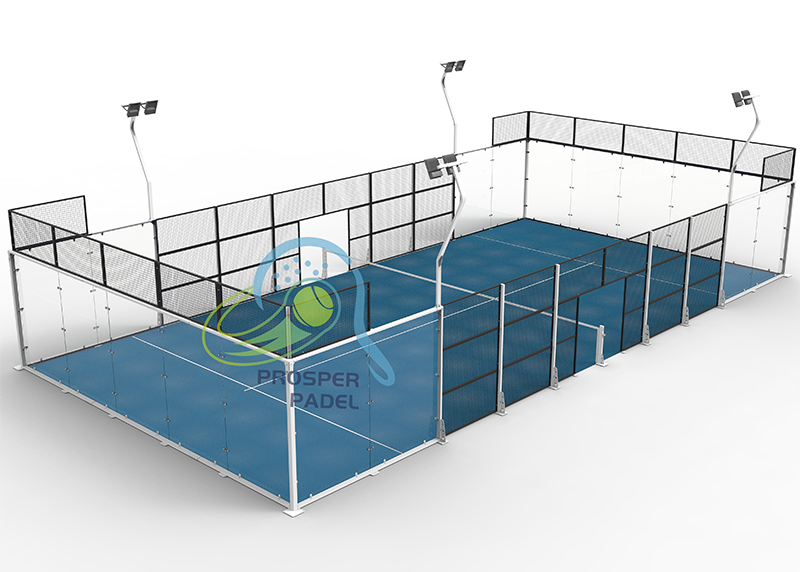

Pro Panoramic Padel Court JZX-04

I. Practical Effects of Material Upgrades

Comprehensive Performance Improvement: Thicker pipe walls significantly enhance overall load-bearing capacity. The 3mm thicker wall provides stronger resistance to bending and tearing, making it less prone to wall dents and weld cracks when subjected to glass impacts, pedestrian traffic, or strong winds. Stable Corrosion Resistance and Durability: The pipe is subjected to a double-layer anti-corrosion coating of hot-dip galvanizing and outdoor polyester electrostatic powder coating. The thicker pipe wall substrate is less susceptible to rust penetration. In coastal salt spray, high humidity in the south, and rain and snow in the north, the rate of internal corrosion is significantly slowed.

II. Structural Optimization Effects (Column + Beam Combined Frame System)

The  pro panoramic Padel Court overall rigidity of the frame is improved, and its wind resistance meets mainstream market demands. 100×100*3mm main columns provide vertical load-bearing capacity, while 100×50*3mm beams provide horizontal bracing, forming a rectangular closed-loop load-bearing frame. Combined with diagonal bracing, this creates a triangular stability structure, perfectly bearing the entire system load.

III. Design-Level Optimization Effects

Standardized modular design, suitable for mass production and export transportation. The 100×100*3mm columns and 100×50*3mm beams are standard universal profiles, suitable for container loading, with clear assembly and disassembly sections; both can be modularly assembled, eliminating the need for on-site secondary cutting and modification, increasing installation efficiency by 30%.

Complies with EN 1090-1 steel structures, and EN 1990/EN 1991/EN 1993 European steel structure design codes. Wind load, ultimate bearing capacity, and deflection calculations fully meet requirements.

Click here to inquire→

Tianjin Juzhixin Sports Padel JZX-03 is a best-selling, cost-effective, and versatile model suitable for indoor and outdoor courts, as well as mainstream overseas markets (Europe, Middle East, Southeast Asia). It balances stability, safety, and cost, and boasts the highest market share.

I. Complete Main Steel Structure + Supporting Materials (Core Stable Foundation)

1. Main Load-Bearing Column (Core Material: 100×100×3mm Hot-Dip Galvanized Steel Pipe): The entire pipe undergoes hot-dip galvanizing treatment, with two coats of polyester powder coating on the outer layer; double-layer galvanized and powder-coated for corrosion protection, preventing the pipe from rusting and thinning, eliminating the risk of collapse after long-term use.

2. Horizontal Beams (Standard Configuration: 100×50×3mm Hot-dip galvanized steel pipes)

These horizontal beams connect all the columns, forming a closed rectangular frame that distributes the weight of the glass and impact force, preventing the columns from shifting left or right.

3. Connecting Hardware (Stable and Safety Key Auxiliary Materials)

Bolts: 8.8 grade high-strength hot-dip galvanized bolts, nuts, flat washers, and spring washers.

Rust-free, non-stripping, and resistant to loosening under long-term outdoor vibration, reducing future maintenance.

4. Bottom Flange Base

10mm thick steel plate base, M16 hot-dip galvanized anchor bolts, firmly locking the bottom of the columns.

5. Tempered Glass Enclosure

12mm tempered glass: Tempered glass produces no sharp, large fragments after breakage, reducing the risk of cuts; Stable: High hardness, resistant to repeated impacts from tennis balls, not easily shattered, with a uniform rebound trajectory, meeting basic tournament standards.

6.Frame

50×30×2.0mm galvanized square tube with built-in horizontal reinforcing ribs, not easy to sag or deform; Core: 4mm hot-dip galvanized welded wire mesh, 50×50mm mesh size;

7.Artificial turf

Grass height 10-12mm, made of brand new high-density polyethylene (PE) monofilament, with added UV resistance and anti-aging properties.

Comprehensively improves structural stability and ensures safe use.

Tianjin Juzhixin Sports Technology Co., Ltd. is a trustworthy Chinese manufacturer of padel tennis courts. We specialize in the integrated R&D, production, delivery, and after-sales service of tournament-grade and export-standard padel tennis courts. Leveraging our own robust supply chain, we offer stable supply, secure packaging, and worry-free after-sales service throughout the entire process. We are a long-term trusted partner for clubs, schools, cultural tourism organizations, and resellers.

I. Strong Corporate Strength, Ensuring Quality and Delivery Time from the Source: We have our own standardized steel structure production workshop equipped with a full set of CNC bending, fully automated welding, hot-dip galvanizing, and electrostatic powder coating automated equipment. Columns, beams, and netting are all produced in-house, ensuring controllable production capacity and completely avoiding issues such as insufficient capacity, inconsistent quality control, and delayed delivery.

II. One-stop supporting services, with a core focus on stable supply and secure packaging. Stable and controllable supply and delivery eliminate the risk of project delays. Refined production scheduling and strict adherence to delivery commitments; a comprehensive inventory and emergency response mechanism; professional international logistics coordination; one-stop shipping for full container loads/less than container loads; multi-layered secure packaging to prevent damage during transport; complimentary complete installation accessory kits and spare parts for repairs; all packaging is categorized, labeled, and numbered according to the stadium assembly area for rapid sorting, significantly reducing on-site installation time.
