Padel Court
The panoramic Padel Courthouse features an innovative column-free structural design, completely abandoning traditional column-supported structures and maximizing the field of vision. Whether athletes are competing or spectators are watching, they all enjoy unobstructed, expansive views, breaking the sense of spatial limitation.The entire steel frame of the venue is painted black, giving it a solid and stable look with clean lines. It also boasts excellent corrosion resistance and weather resistance. The perimeter fencing system seamlessly integrates with the column-free structure, achieving both overall stability and a sense of openness. This design meets the standards for professional competitions and, thanks to its unique visual design, creates a sports space that is both practical and aesthetically pleasing.
Share:
Product Details
Parameter Specification

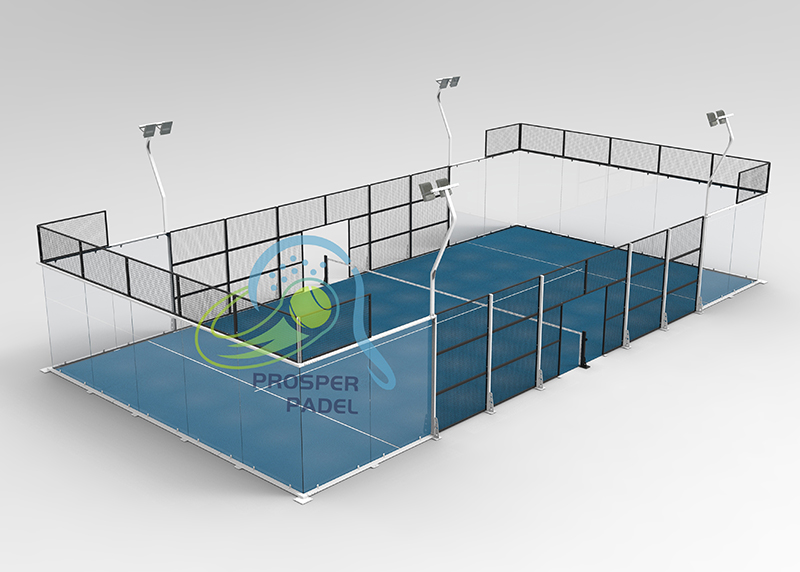

JZX-10 Super Panoramic Padel Court
Product Advantages
Wide field of vision and stable structure
Product Features
The main functions of the product
Training and selection competitions for panel tennis, etc
Product application scenarios
Sports venues, fitness clubs, etc
Product application scope and precautions
Mainly designed for plate tennis players and tennis enthusiasts. The venue should be regularly inspected and maintained.
Components and Materials
The main components include the wire mesh frame, steel structure, artificial turf, tempered glass, and lighting equipment.
Product Parameters

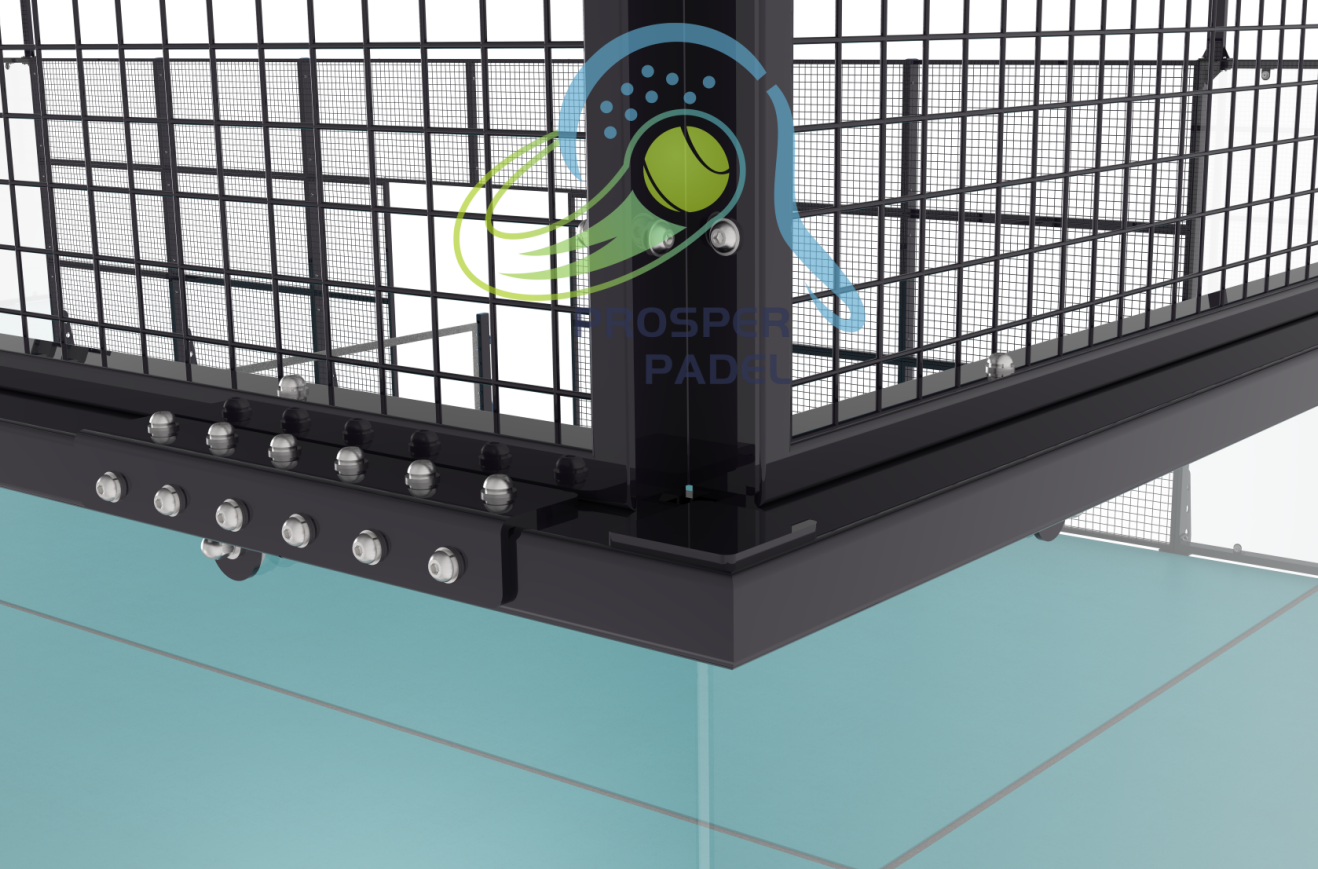

1. Side posts are made of 100 mm*50 mm*3 mm high-quality galvanized steel pipe; crossbeams are made of 100 mm*150 mm*3 mm high-quality galvanized steel pipe.
2. Frame size: 30 mm*50 mm*2 mm.
3. End and side perimeter fencing height: 4 m; middle side perimeter fencing height: 3 m.
4. Wire diameter: 4 mm; mesh size: 50 mm*50 mm.
5. Lighting system: 8 sets of LED lights, each with a power of 200 W; light posts are embedded inside the fencing, with a height of 6000 mm; illuminance reaches 300 Lux.

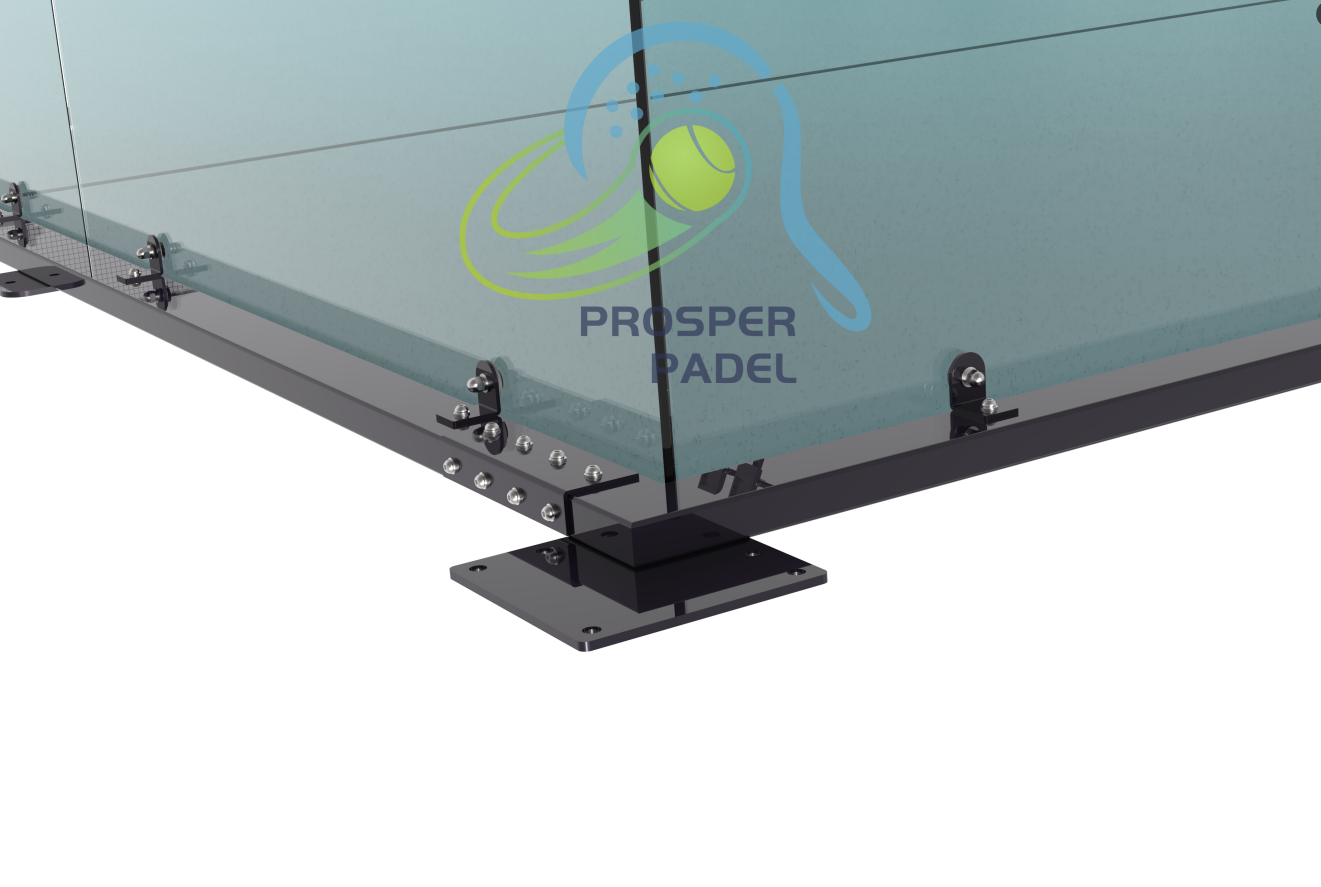

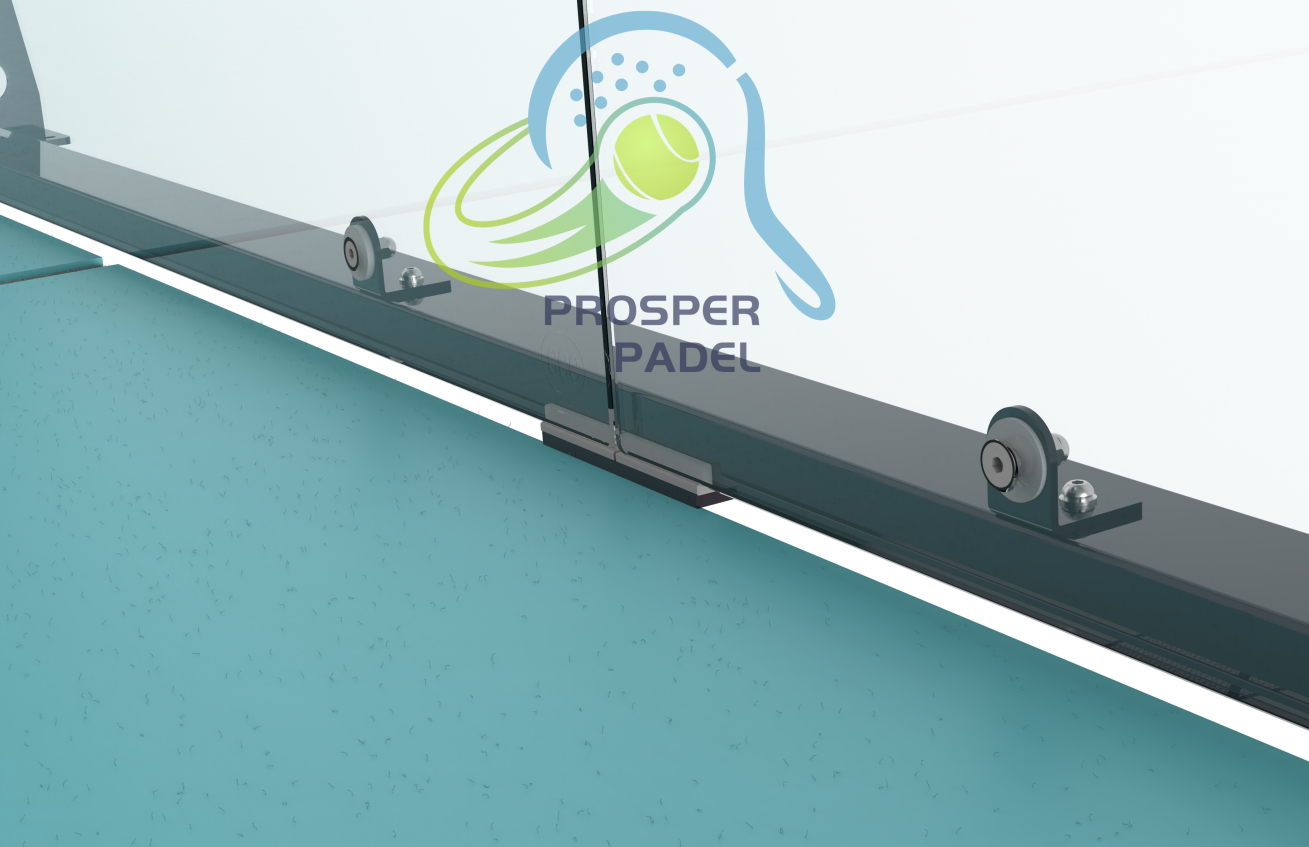

6. Tempered glass: Specially made explosion-proof tempered glass; dimensions: 2995 mm*1995 mm; thickness: 12 mm.
7. Straw fiber density: 8000 tex. DTEX
8. Row spacing: 3/16 inch
9. Stitch count: 24 stitches/10cm
10. Density: 52500clusters/㎡
11. Adhesive: Black PU adhesive，Certified by the Spanish Padel Court Association
Components and Packaging of the Product
Manufacturing Process Flow

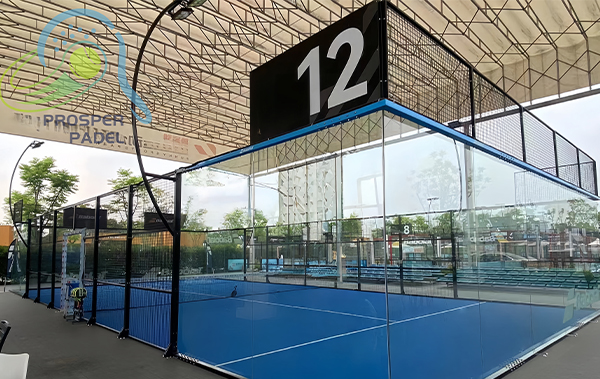

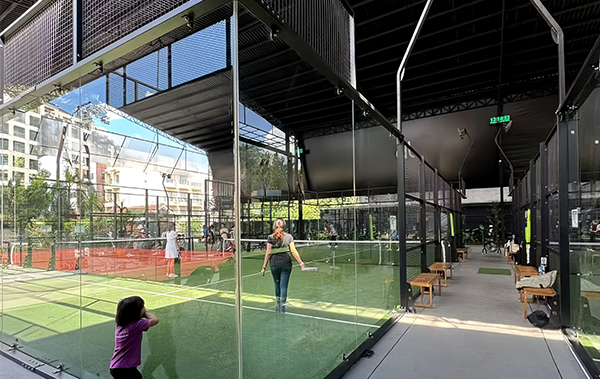

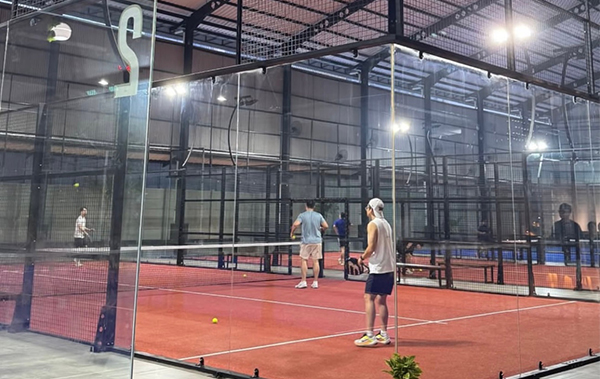

Application Showcase
Click To Get Your Exclusive Plan
Tianjin Juzhixin Sports Technology Co., Ltd is an innovative sports technology and import and export sales enterprise based in Tianjin and radiating its business worldwide. It is dedicated to empowering the development of the sports industry with technology
Contact Us

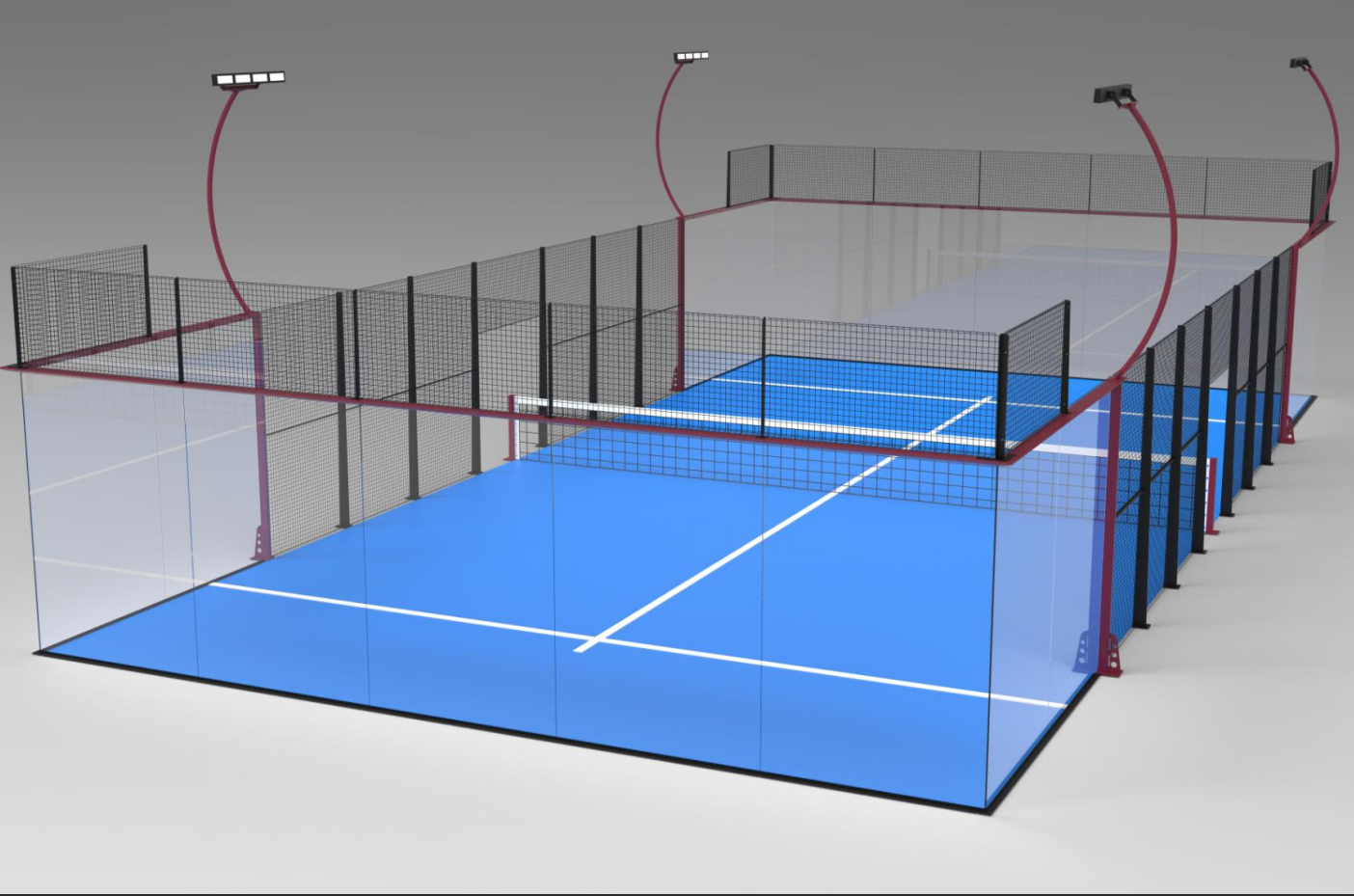

Related Products
